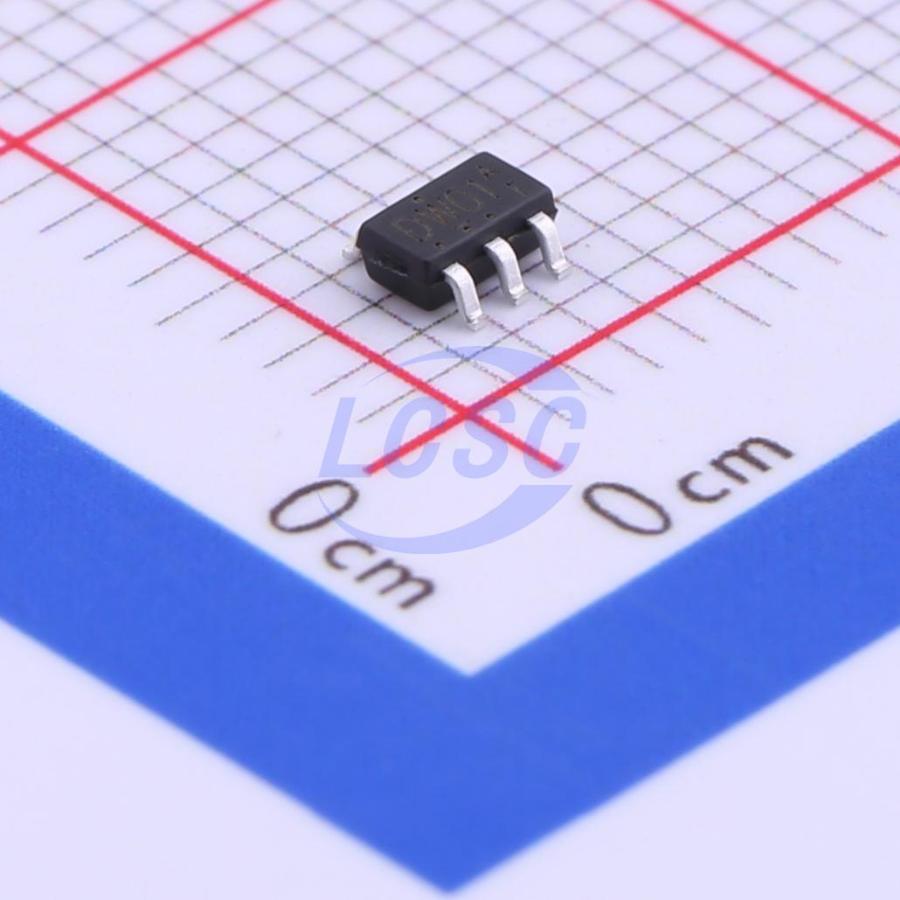

DW01A
Lithium Battery SOT-23-6L Battery Management RoHS
Battery protection IC protects lithium-ion/polymer batteries.
- Manufacturer
- PUOLOP
- Manufacturer part #
- DW01A
- Store part #
- C351410
- Package / case
- SOT-23-6L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,13,200 in stock
#C351410
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.31 | ₹66.20 |
| 200+ | ₹2.59 | ₹518.00 |
| 600+ | ₹2.28 | ₹1,368.00 |
| 3,000+ | ₹2.04 | ₹6,120.00 |
| 9,000+ | ₹1.94 | ₹17,460.00 |
| 21,000+ | ₹1.88 | ₹39,480.00 |
20 × ₹3.31
₹66.20
excl. GST
₹78.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DW01A
₹66.20 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3uA
- 0V Battery Charge
- Support
- Operating Voltage
- 300mV~10V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.039 g
Overview
The DW01A battery protection IC is designed to protect lithium-ion/polymer battery from damage or degrading the lifetime due to overcharge, overdischarge, and/or overcurrent for one-cell lithium-ion/polymer battery powered systems, such as cellular phones. The ultra-small package and less required external components make it ideal to integrate the DW01A into the limited space of battery pack. The accurate ±50mV overcharging detection voltage ensures safe and full utilization charging. The very low standby current drains little current from the cell while in storage.
Applications
- Protection IC for One-Cell Lithium-Ion / Lithium-Polymer Battery Pack
Key features
- Reduction in Board Size due to Miniature Package SOT-23-6.
- Ultra-Low Quiescent Current at 3μA (Vcc = 3.6V).
- Overdischarge Current at 4μA (VCC = 1.8V).
- Precision Overcharge Protection Voltage 4.3V ±50mV
- Two Detection Levels for Overcurrent Protection.
- Delay times are generated by internal circuits.
- No external capacitors required.
