FMDatasheet (PDF)

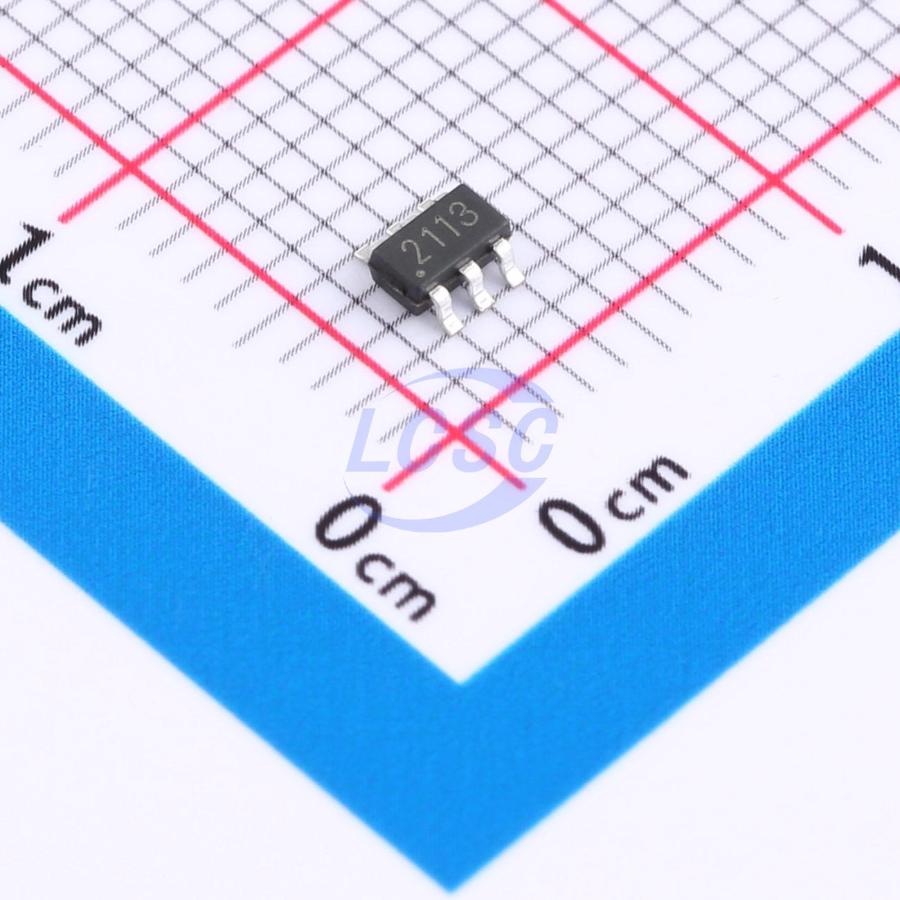

FM2113
Lithium Battery SOT-23-6 Battery Management RoHS
SOT-23-6ROHS CompliantActive
One Cell Lithium-ion/Polymer Battery Protection IC
- Manufacturer
- FM
- Manufacturer part #
- FM2113
- Store part #
- C2832124
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,94,979 in stock
#C2832124
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹7.12 | ₹7.12 |
| 10+ | ₹5.69 | ₹56.90 |
| 30+ | ₹4.91 | ₹147.30 |
| 100+ | ₹4.43 | ₹443.00 |
| 500+ | ₹4.02 | ₹2,010.00 |
| 1,000+ | ₹3.80 | ₹3,800.00 |
1 × ₹7.12
₹7.12
excl. GST
₹8.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FM2113
₹7.12 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3uA
- 0V Battery Charge
- Support
- Operating Voltage
- 1.5V~8V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.042 g
Overview
FM2113 series are high precision protection ICs for over- charge and over- discharge of rechargeable one- cell Li- ion or Li- polymer battery. It integrates the high precision protection capability for over- charge, over- discharge, excess- current discharge, and battery short.
Applications
- rechargeable one- cell Li- ion battery pack
- rechargeable one- cell Li- polymer battery pack
Key features
- High precision protection voltage threshold (over- charge/over- discharge)
- Delay Times are generated inside
- Self recovery function of over discharge
- Operation Current Consumption: 3.0uA typ (VDD = 3.9V)
- High voltage withstand design is adopted for the terminal connecting the charger (CS terminal and OC terminal, absolute maximum rating is 20V)
- Allow variable 0V battery charge
- Wide operating temperature range: - 40°C ~ +85°C
- Small SOT23- 6 Package
