VBsemi ElecDatasheet (PDF)

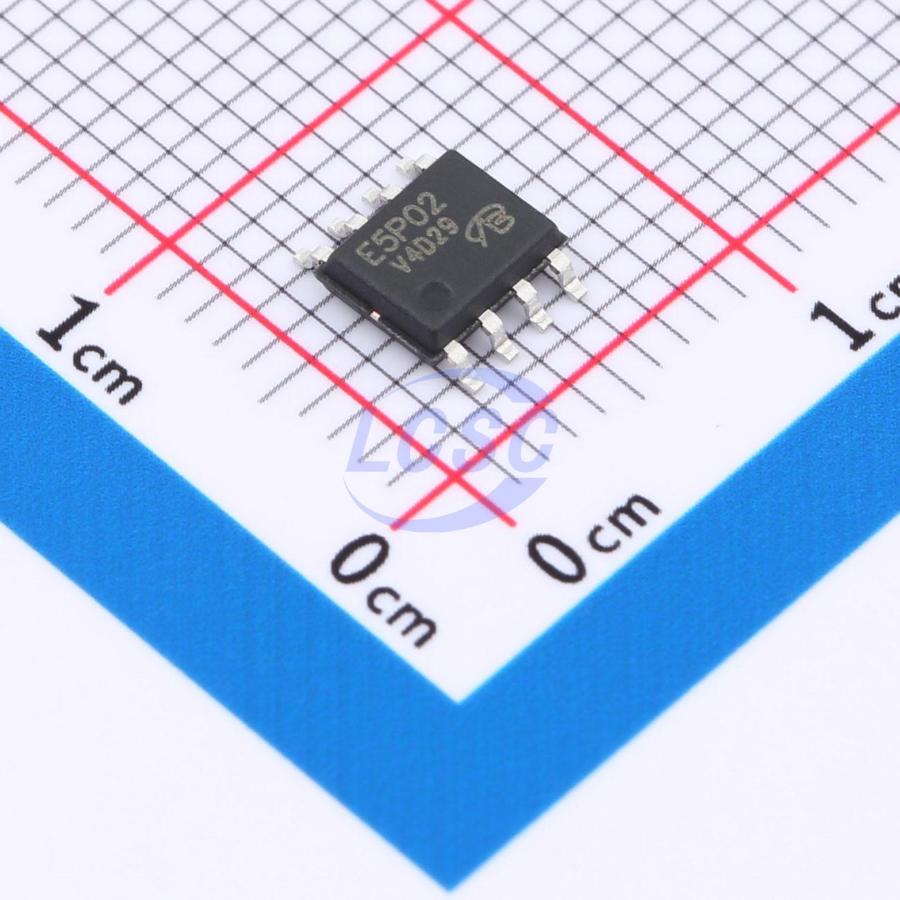

E5P02-VB
P-Channel 20V 13A 19W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 20V 13A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- E5P02-VB
- Store part #
- C22389092
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C22389092
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.32 | ₹236.60 |
| 50+ | ₹37.16 | ₹1,858.00 |
| 150+ | ₹32.81 | ₹4,921.50 |
| 500+ | ₹27.37 | ₹13,685.00 |
| 2,500+ | ₹24.95 | ₹62,375.00 |
| 4,000+ | ₹23.50 | ₹94,000.00 |
5 × ₹47.32
₹236.60
excl. GST
₹279.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
E5P02-VB
₹236.60 for 5 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 13A
- Pd - Power Dissipation
- 19W
- RDS(on)
- 15mΩ@4.5V;21mΩ@2.5V;40mΩ@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 50nC@8V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.115 g
Overview
Applications
- Portable devices - Load switch - Battery switch - Charger switch
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- Compliant with RoHS Directive 2002/95/EC
