Everanalog IC design

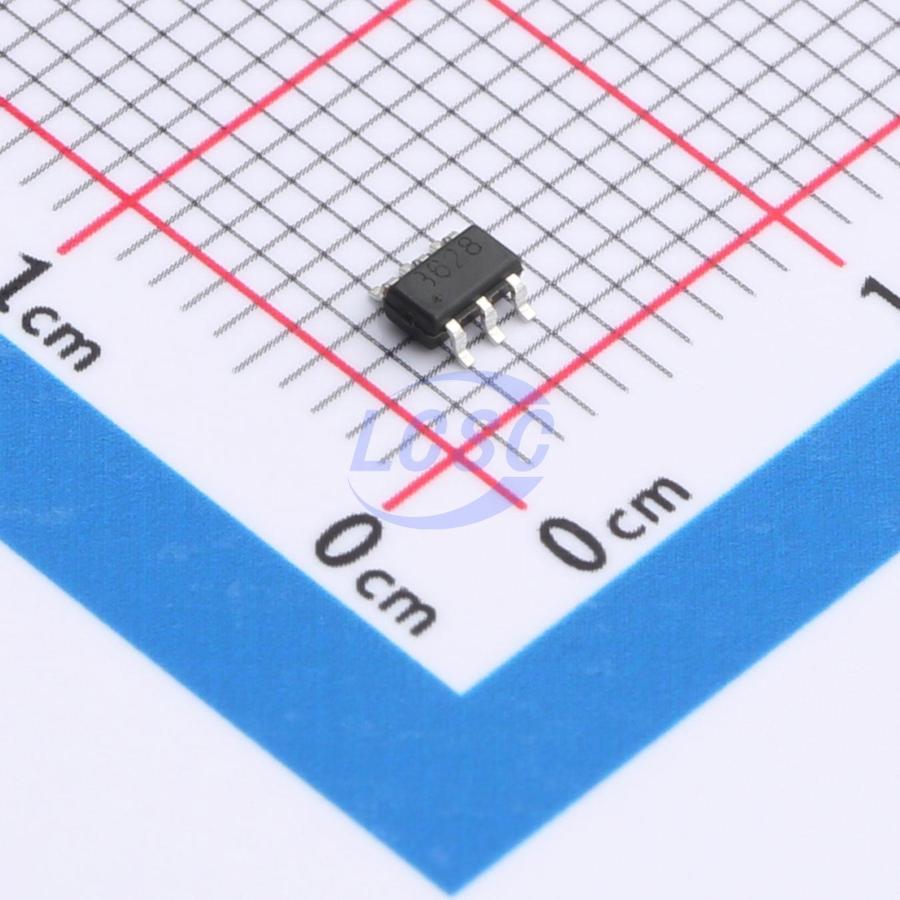

EA2208LT6R

1.2MHz Boost Adjustable 600mV~16V 2.5A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-6ROHS CompliantActive

2.5A, 1.2MHz High Efficiency Step Up Converter

Manufacturer: Everanalog IC design
Manufacturer part #: EA2208LT6R
Store part #: C22462489
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,855 in stock

#C22462489

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹7.47	₹37.35
50+	₹6.54	₹327.00
150+	₹6.07	₹910.50
500+	₹5.72	₹2,860.00
3,000+	₹5.42	₹16,260.00
6,000+	₹5.29	₹31,740.00

Quantity (min 5, multiples of 5)

5 × ₹7.47

₹37.35

excl. GST

₹44.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

EA2208LT6R

₹37.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 1.2MHz
Function: Boost
Number of Outputs: 1
Features: Adjustable current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.2V~16V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~16V
Output Current: 2.5A
Quiescent Current: 100uA;1mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.038 g

Overview

The EA2208L is a constant frequency, current mode step-up converter intended for small, low power applications. The EA2208L switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life. The EA2208L features automatic shifting to pulse frequency modulation mode at light loads. The EA2208L includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The EA2208L is available in a small 6 pin SOT-23 package.
