Everanalog IC design

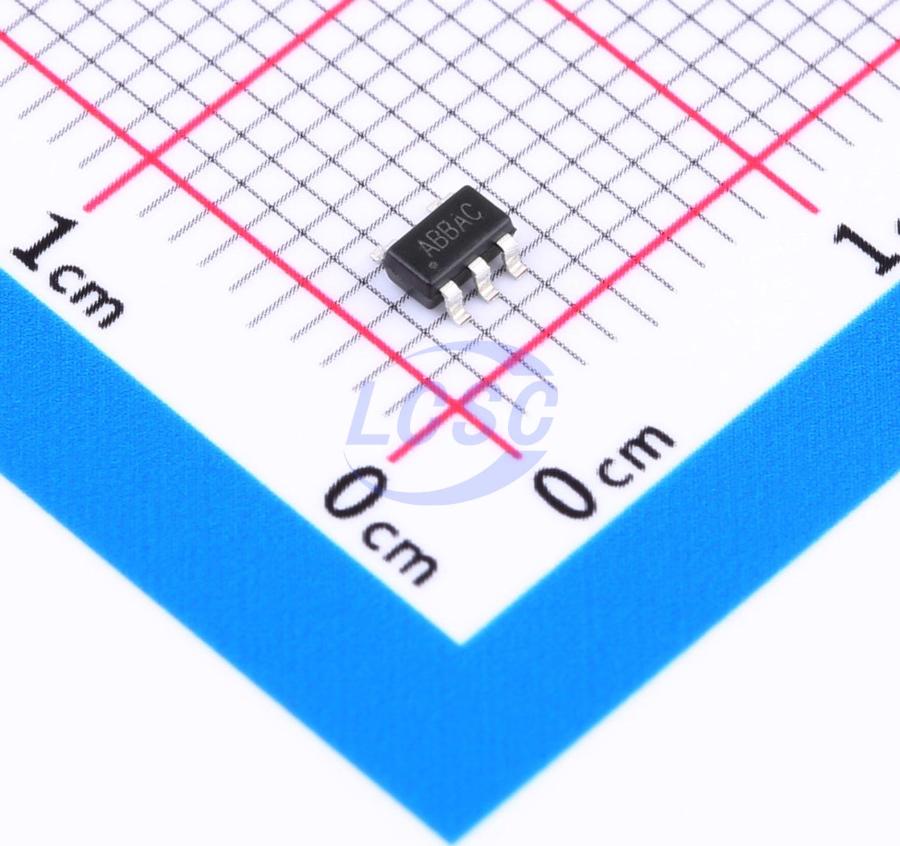

EA8101T5R

1.5MHz Step-down type Adjustable 600mV~5.5V 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-5ROHS CompliantActive

1A, 1.5MHz High Efficiency Buck Converter

Manufacturer: Everanalog IC design
Manufacturer part #: EA8101T5R
Store part #: C691399
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20,180 in stock

#C691399

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
10+	₹5.77	₹57.70
100+	₹4.52	₹452.00
300+	₹3.90	₹1,170.00
3,000+	₹3.43	₹10,290.00
6,000+	₹3.06	₹18,360.00
9,000+	₹2.86	₹25,740.00

Quantity (min 10, multiples of 10)

10 × ₹5.77

₹57.70

excl. GST

₹68.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

EA8101T5R

₹57.70 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 1.5MHz
Number of Outputs: 1
Function: Step-down type
Features: Cycle-by-cycle current limiting;Overcurrent Protection;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~5.5V
Output Current: 1A
Quiescent Current: 45uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.022 g

Overview

The EA8101 is a high switching frequency, high efficiency synchronous buck regulator, designed to operate from 2.5V to 5.5V input voltage range. Built-in low RDS(ON) high/low side Power-MOSFETS not only reduce external components and has up to 95% efficiency, ideal for 1A output current applications. The EA8101 features 100% duty cycle low dropout operation, extending battery life in portable systems. Besides, this device is designed to take into account the light load mode operation and can provide high efficiency over a wide range of the load current. The internal compensation design not only allows users to more simplified application, and can reduce the cost of external components. The EA8101 is available in the SOT-23-5 and TSOT-23-5 packages and easy to use.
