Everanalog IC design

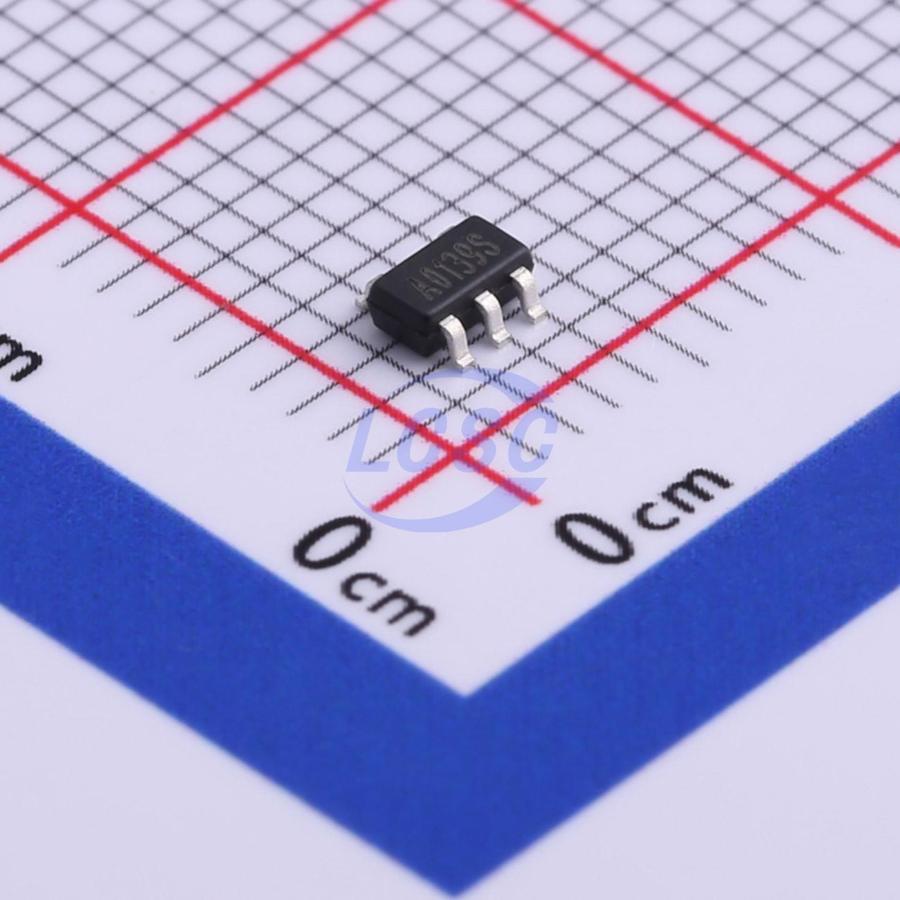

EA8103T5R

1.35MHz Step-down type Adjustable 1.13V 1.2A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-5ROHS CompliantActive

1.2A Sync. Buck Converter

Manufacturer: Everanalog IC design
Manufacturer part #: EA8103T5R
Store part #: C570859
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,710 in stock

#C570859

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.65	₹53.25
50+	₹8.45	₹422.50
150+	₹7.36	₹1,104.00
500+	₹6.54	₹3,270.00
3,000+	₹5.72	₹17,160.00
6,000+	₹5.38	₹32,280.00

Quantity (min 5, multiples of 5)

5 × ₹10.65

₹53.25

excl. GST

₹62.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

EA8103T5R

₹53.25 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.35MHz
Number of Outputs: 1
Function: Step-down type
Features: Cycle-by-cycle current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.6V~6V
Switch tube (built-in/external): Built-in
Output Voltage: 1.13V
Output Current: 1.2A
Quiescent Current: 1uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

The EA8103 is a high switching frequency, high efficiency synchronous buck regulator, designed to operate from 2.6V to 6V input voltage range. Built-in low RDS(ON) high/low side Power-MOSFETS not only reduce external components and has up to 95% efficiency, ideal for 1.2A output current applications. The EA8103 is designed to take into account the light load mode operation and can provide high efficiency over a wide range of the load current. The internal compensation design not only allows users to more simplified application, and can reduce the cost of external components. The EA8103 is available in the SOT-23-5 package and easy to use.
