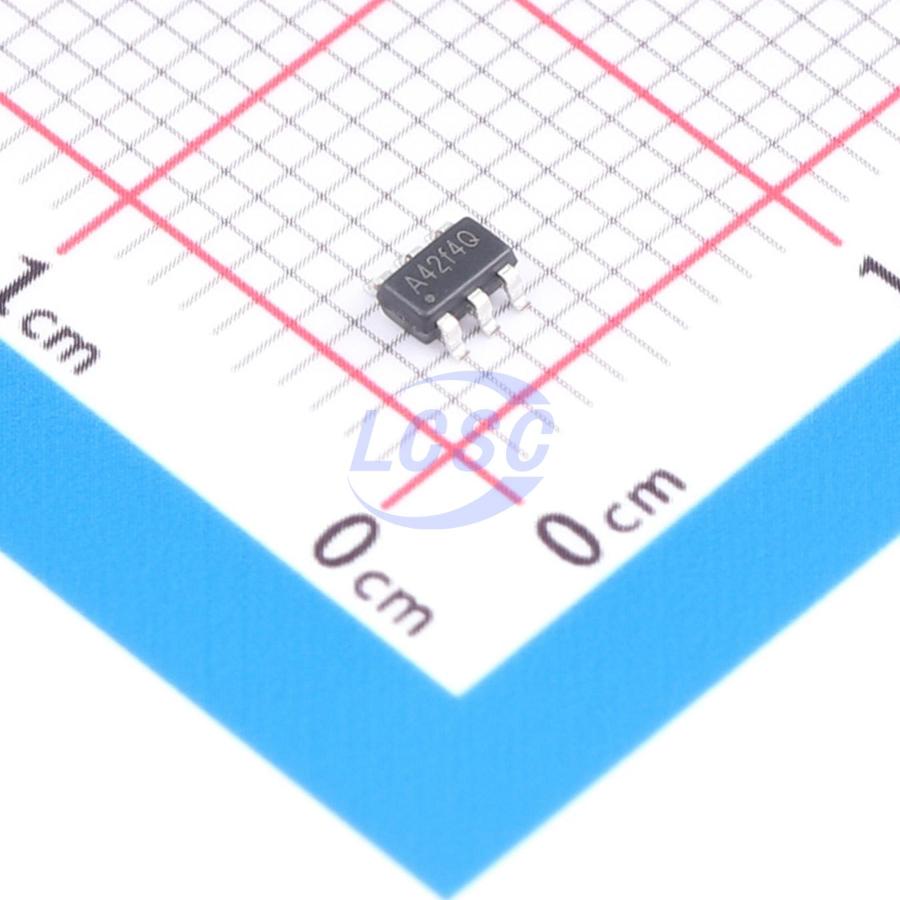

EA8210BT6R
Buck Switching Regulator IC Adjustable 0.6V~17V 1 Output 2.5A SOT-23-6
SOT-23-6ROHS CompliantActive
23V, 2.5A, 500KHz Synchronous Buck Converter
- Manufacturer
- Everanalog IC design
- Manufacturer part #
- EA8210BT6R
- Store part #
- C49237797
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,540 in stock
#C49237797
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.29 | ₹51.45 |
| 50+ | ₹8.14 | ₹407.00 |
| 150+ | ₹7.06 | ₹1,059.00 |
| 500+ | ₹6.26 | ₹3,130.00 |
| 3,000+ | ₹5.61 | ₹16,830.00 |
| 6,000+ | ₹5.28 | ₹31,680.00 |
5 × ₹10.29
₹51.45
excl. GST
₹60.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EA8210BT6R
₹51.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 400kHz~600kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~21V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2.5A
- Output Voltage
- 600mV~17V
- Quiescent Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The EA8210B is a 2.5A step-down regulator designed to operate over an input voltage range of 4.5V to 23V. The integrated high-side and low-side power MOSFETs with low on-resistance reduce external component count while achieving up to 96% efficiency, making it ideal for 2.5A output current applications. The EA8210B is designed for light-load operation, achieving 80% efficiency at an output load of 20mA. The EA8210B features comprehensive protection functions, including cycle-by-cycle current limiting, short-circuit protection, over-temperature protection, and UVLO protection. Internal compensation simplifies user application design and reduces external component costs. The EA8210B is available in a SOT23-6 package for ease of use.
Applications
- Distributed power systems
- Network communication products
- LCD and flat panel TVs
- Notebook computers
Key features
- Integrated low on-resistance power MOSFET
- Up to 96% efficiency
- Up to 80% light-load efficiency
- 4.5V to 23V input voltage range
- Output voltage adjustable down to 0.8V
- 2A continuous load current
- Fixed 500KHz switching frequency
- Internal compensation
- Cycle-by-cycle current limiting
- Auto-recovery hiccup mode short-circuit protection
- Stable operation with low-ESR ceramic output capacitors
- Input undervoltage lockout protection
- Auto-recovery over-temperature protection
- Available in SOT23-6 package
