Everanalog IC design

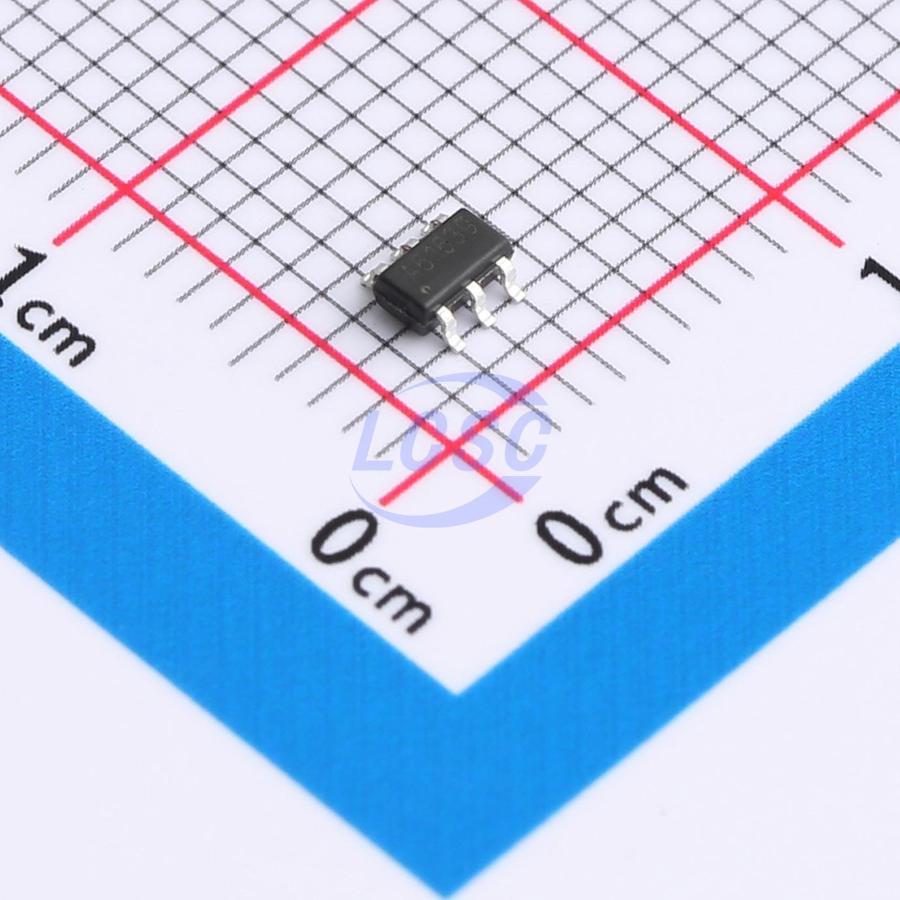

EA8212LT6R

600kHz Step-down type Adjustable 600mV~9V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-6ROHS CompliantActive

16V, 2A, 600KHz Synchronous Buck Converter

Manufacturer: Everanalog IC design
Manufacturer part #: EA8212LT6R
Store part #: C22462490
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,025 in stock

#C22462490

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.02	₹50.10
50+	₹7.85	₹392.50
150+	₹6.76	₹1,014.00
500+	₹5.94	₹2,970.00
3,000+	₹5.48	₹16,440.00
6,000+	₹5.15	₹30,900.00

Quantity (min 5, multiples of 5)

5 × ₹10.02

₹50.10

excl. GST

₹59.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

EA8212LT6R

₹50.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 600kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~16V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~9V
Output Current: 2A
Quiescent Current: 300uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.049 g

Overview

The EA8212L is a 2A buck regulator, designed to operate from 4.5V to 16V input voltage range. Built-in low RDS(ON) high/low side Power-MOSFETS not only reduce external components and has up to 96% efficiency, ideal for 2A output current applications. The EA8212L is designed to take into account the light load mode operation. At output loading 20mA condition, the efficiency up to 80%. The EA8212L has complete protection functions, including cycle-by-cycle current limit, short circuit protection, OTP and UVLO protection. The internal compensation design not only allows users to more simplified application, and can reduce the cost of external components. The EA8212L is available in the SOT-23-6 package and easy to use.
