Everanalog IC design

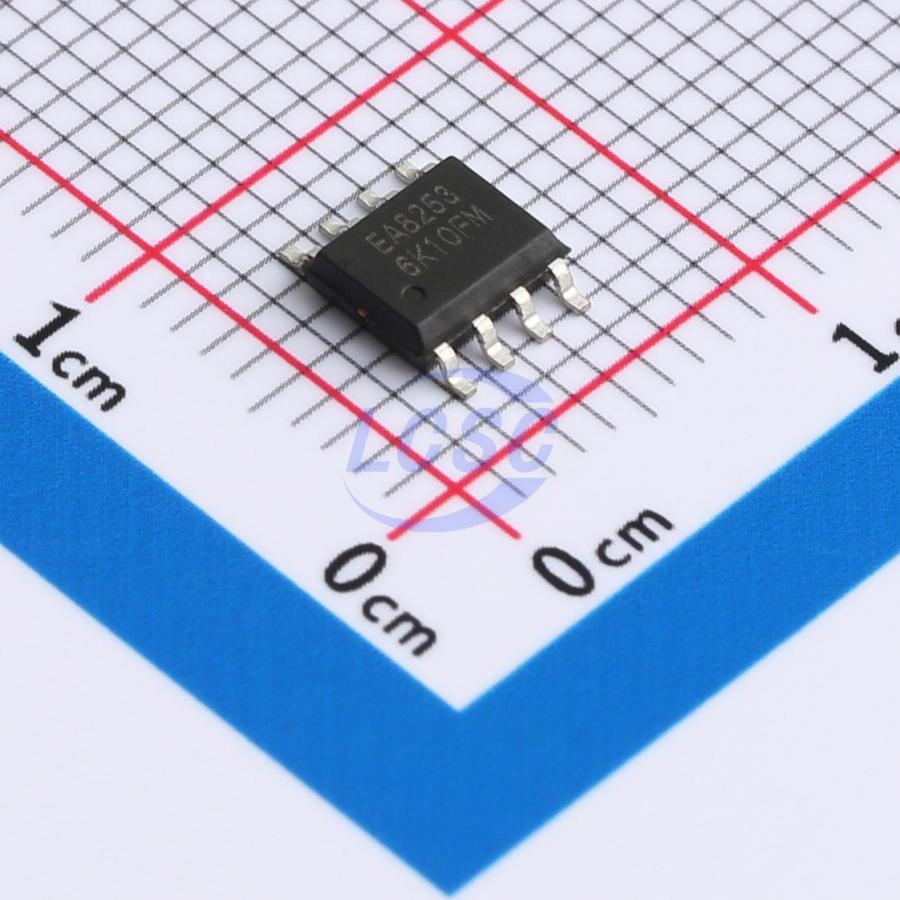

EA8253P8R

600kHz Step-down type Adjustable 766mV~19V 3A SOP-8-EP Voltage Regulators - DC DC Switching Regulators RoHS

SOP-8-EPROHS CompliantActive

23V, 3A, 600KHz Synchronous Buck Converter

Manufacturer: Everanalog IC design
Manufacturer part #: EA8253P8R
Store part #: C22462488
Package / case: SOP-8-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,865 in stock

#C22462488

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹21.92	₹109.60
50+	₹21.41	₹1,070.50
150+	₹21.06	₹3,159.00
500+	₹20.72	₹10,360.00

Quantity (min 5, multiples of 5)

5 × ₹21.92

₹109.60

excl. GST

₹129.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

EA8253P8R

₹109.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 600kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Adjustable soft-start;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~23V
Switch tube (built-in/external): Built-in
Output Voltage: 766mV~19V
Output Current: 3A
Quiescent Current: 1.9mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.16 g

Overview

The EA8253 is a 3A buck regulator, designed to operate from 4.6V to 23V input voltage range. Built-in low RDS(ON) high/low side Power-MOSFETS not only reduce external components but also has up to 94% efficiency, ideal for 3A output current applications. The EA8253 is designed to take into account the light load mode operation. At output loading 20mA condition, the efficiency up to 81%. The EA8253 has complete protection functions, including cycle-by-cycle current limit, short circuit protection, OVP, OTP and UVLO protection. The EA8253 is available in the SOP-8 (with EP) package and has a good cooling effect and easy to use.
