Everanalog IC designDatasheet (PDF)

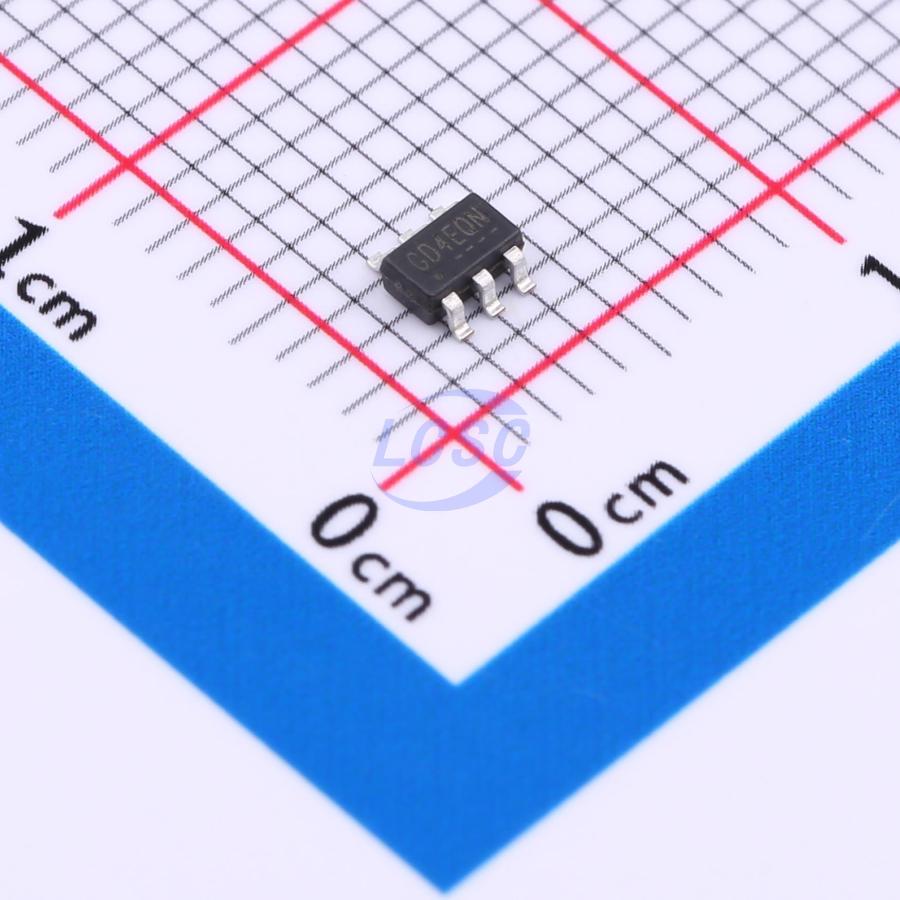

EA9203
Step-down type 1MHz Adjustable 800mV~8V 1.2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
Synchronous Step-Down DC/DC Converter
- Manufacturer
- Everanalog IC design
- Manufacturer part #
- EA9203
- Store part #
- C5213772
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,995 in stock
#C5213772
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.27 | ₹76.35 |
| 50+ | ₹12.15 | ₹607.50 |
| 150+ | ₹10.58 | ₹1,587.00 |
| 500+ | ₹9.42 | ₹4,710.00 |
| 3,000+ | ₹7.95 | ₹23,850.00 |
| 6,000+ | ₹7.49 | ₹44,940.00 |
5 × ₹15.27
₹76.35
excl. GST
₹90.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EA9203
₹76.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 1MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~24V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~8V
- Output Current
- 1.2A
- Quiescent Current
- 450uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
The EA9203 is a synchronous step -down DC/DC converter with fast constant on time (FCOT) mode control. It has integrated high - side (280mΩ, typ) and low - side (160mΩ, typ) power switches, and provides 1.2A continuous load current. It regulates input voltage from 4.5V to 24V, and down to an output voltage as low as 0.8V. Using FCOT control scheme provides fast transient response, which can minimize the component size without additional external compensation network.
Applications
- STB (Set - Top - Box)
- LCD Display, TV
- Distributed Power System
- Networking, XDSL Modem
- Surveillance
Key features
- Low RDS(ON) Integrated Power MOSFET (280mΩ/160mΩ)
- Wide Input Voltage Range: 4.5V to 24V
- Output Voltage Range: 0.8V to 8V
- 1.2A Output Current
- FCOT Mode Enables Fast Transient Response
- Pseudo 1MHz Frequency
- Support All Ceramic Capacitors
- Internal 1.5ms Soft - Start
- Input Under Voltage Lockout
- Cycle - by - Cycle Current Limit
- Hiccup Short Circuit Protection
- Over Temperature Protection with Auto Recovery
- SOT - 23 - 6 Package
