onsemiDatasheet (PDF)

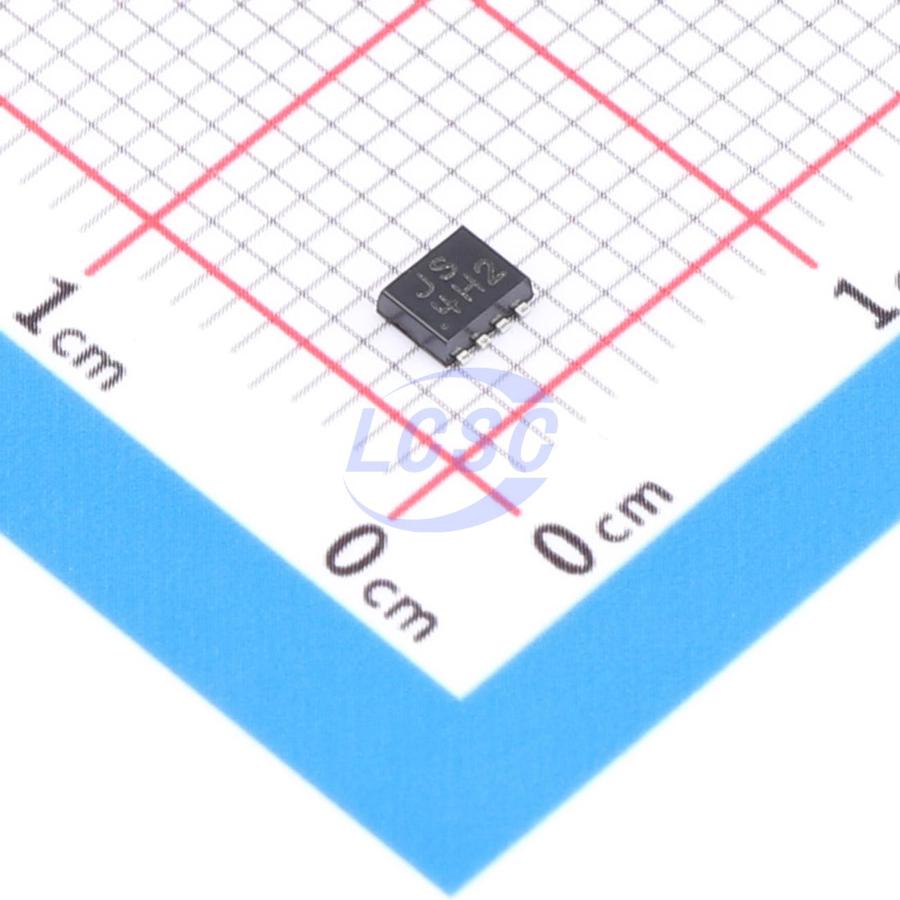

ECH8315-TL-H
1.5W 30V 7.5A 49mΩ@24V 1 P-Channel P-Channel SOT-28FL Single FETs, MOSFETs RoHS
SOT-28FLROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- ECH8315-TL-H
- Store part #
- C336038
- Package / case
- SOT-28FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2 in stock
#C336038
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹241.59 | ₹241.59 |
| 10+ | ₹237.52 | ₹2,375.20 |
| 30+ | ₹234.94 | ₹7,048.20 |
| 100+ | ₹232.13 | ₹23,213.00 |
1 × ₹241.59
₹241.59
excl. GST
₹285.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ECH8315-TL-H
₹241.59 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 200pF
- Ciss-Input Capacitance
- 875pF
- Pd - Power Dissipation
- 1.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 7.5A
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 49mΩ@24V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 18nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.56 g
Overview
This power MOSFET is fabricated using trench technology, specifically designed to reduce on-resistance. The device is suitable for applications requiring low on-resistance.
Applications
- Load Switch - Li-ion Battery Protection Switch - Motor Driver
Key features
- Low on-resistance
- 4V gate drive
- Gate with ESD diode protection
- Lead-free, halogen-free, and RoHS compliant
