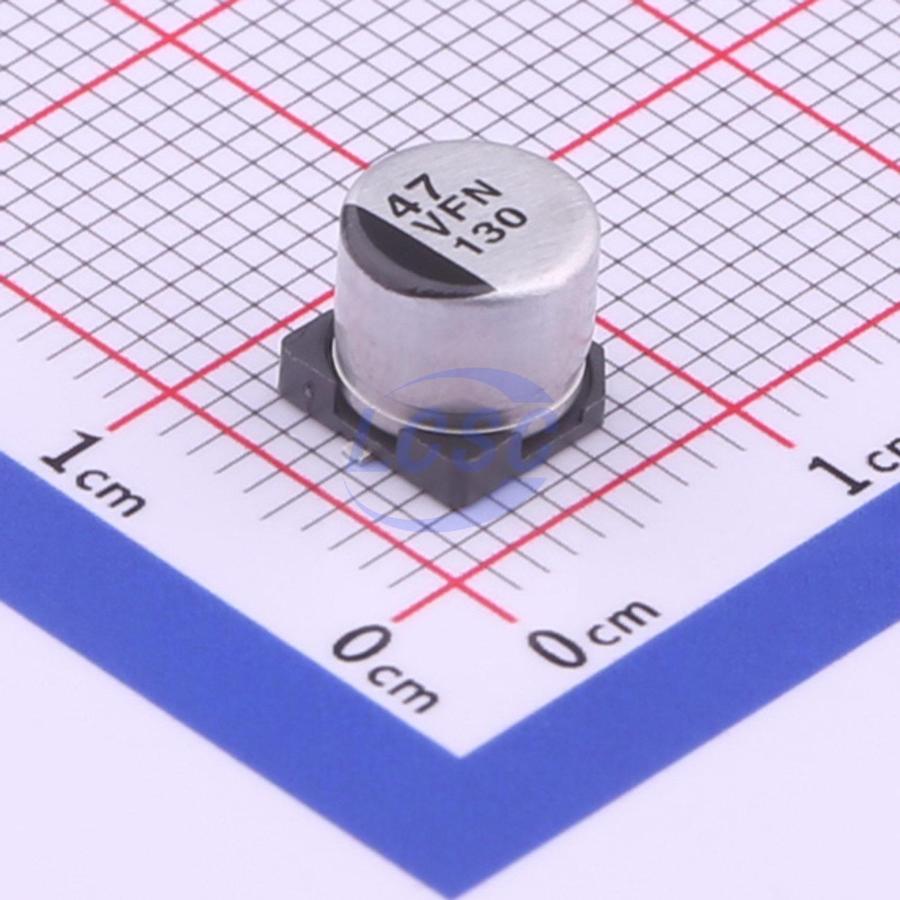

PANASONIC

EEEFN1V470P

47uF ±20% 35V Aluminum Electrolytic Capacitors 2000hrs@105℃

SMD,D6.3xL5.8mmROHS3 CompliantActive

CAP ALUM 47uF ±20% 35V SMD

Manufacturer: PANASONIC
Manufacturer part #: EEEFN1V470P
Store part #: C494838
Package / case: SMD,D6.3xL5.8mm
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

80 in stock

#C494838

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹23.44	₹117.20
50+	₹18.28	₹914.00
150+	₹16.07	₹2,410.50
1,000+	₹13.31	₹13,310.00
2,000+	₹12.08	₹24,160.00
5,000+	₹11.34	₹56,700.00

Quantity (min 5, multiples of 5)

5 × ₹23.44

₹117.20

excl. GST

₹138.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

EEEFN1V470P

₹117.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 35V
Lifetime: 2000hrs@105℃
Capacitance: 47uF
Ripple Current: 240mA@100kHz
Polarity type: Polarized
Operating Temperature: -55℃~+105℃
Equivalent Series Resistance(ESR): 360mΩ@100kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.688 g

Overview

SMD aluminum electrolytic capacitors. FN series 6.3V to 50V supports high-temperature lead-free reflow soldering; 63V to 100V supports standard lead-free reflow soldering.

Key features

Durability: 2000 hours at 105°C
Wide voltage range: 6.3V to 100V
High capacitance: 20% to 80% higher than FK series
Vibration-proof products available on request (diameter ≥6.3mm, guaranteed 30G)
AEC-Q200 compliant
RoHS compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
EEEFP1V470AP#C401754PANASONIC · SMD,D6.3xL5.8mm	PANASONIC	SMD,D6.3xL5.8mm	6,935	₹31.41 · 6,935 in stock	View
EEV476M035S9GAA#C3829743KEMET · SMD,D6.3xL5.65mm	KEMET	SMD,D6.3xL5.65mm	830	₹41.50 · 830 in stock	View
UCD1V470MCL1GS#C445448Nichicon · SMD,D6.3xL5.8mm	Nichicon	SMD,D6.3xL5.8mm	1,575	₹23.59 · 1,575 in stock	View
EEEFN1V470V#C497599PANASONIC · SMD,D6.3xL5.8mm	PANASONIC	SMD,D6.3xL5.8mm	650	₹82.89 · 650 in stock	View
UUD1V470MCL1GS#C225869Nichicon · SMD,D6.3xL5.8mm	Nichicon	SMD,D6.3xL5.8mm	520	₹20.45 · 520 in stock	View
