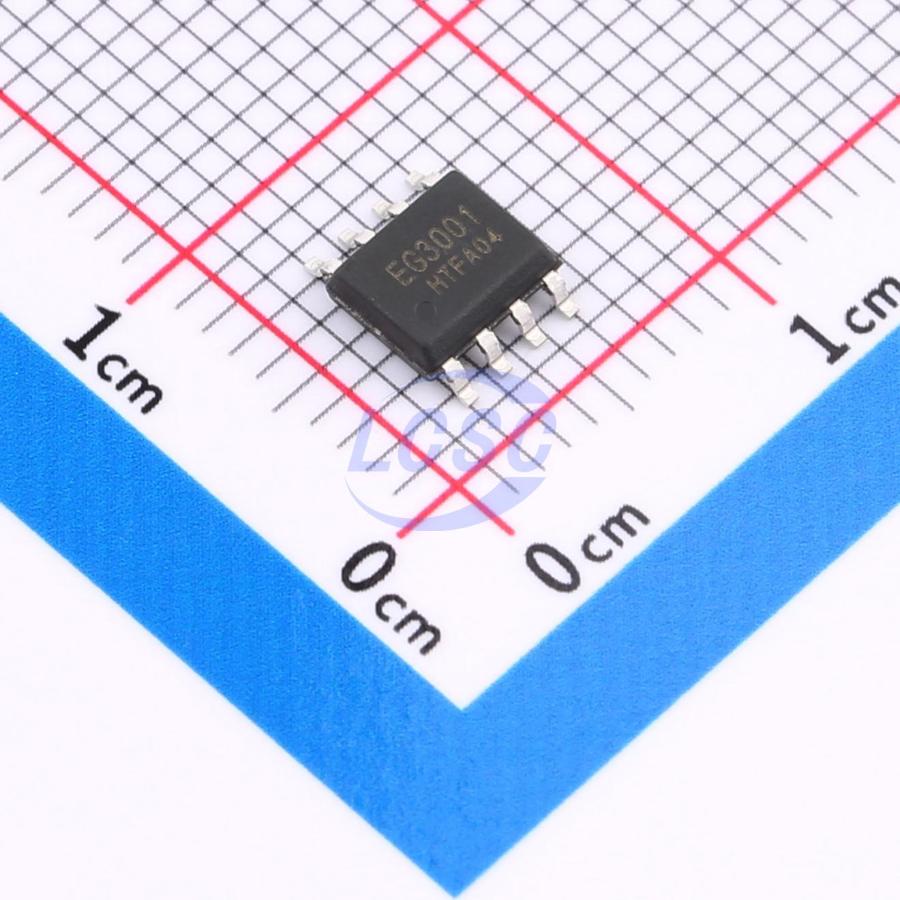

EG3001
Gate Driver IC MOSFET SOP-8
Single-channel power MOSFET driver IC
- Manufacturer
- EG Micro
- Manufacturer part #
- EG3001
- Store part #
- C81708
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
71,110 in stock
#C81708
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.13 | ₹145.65 |
| 50+ | ₹22.62 | ₹1,131.00 |
| 150+ | ₹19.83 | ₹2,974.50 |
| 500+ | ₹16.35 | ₹8,175.00 |
| 2,500+ | ₹13.73 | ₹34,325.00 |
| 4,000+ | ₹12.81 | ₹51,240.00 |
5 × ₹29.13
₹145.65
excl. GST
₹171.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG3001
₹145.65 for 5 + GST
Specifications
- Input Logic Level - Low
- 1V
- Low Level Delay Time
- 200ns
- High Level Delay Time
- 80ns
- Quiescent Current
- 2mA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 3V~30V
- Operating Temperature
- -45℃~+85℃
- Current - Output Low(IOL)
- 1.2A
- Rise Time
- 160ns
- Fall Time
- 50ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 1A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
EG3001 is a single-channel, cost-effective gate/base driver IC dedicated to power MOSFETs or high-power bipolar transistors. It integrates input logic signal processing, SD fast shutdown circuitry, and high-current output drive circuitry, making it ideal for power MOSFET drivers in power converters and motor controllers. The EG3001 features a wide supply voltage range of 3V~30V and low quiescent current of only 2mA. Its output stage provides separate source current (OUTD) and sink current (OUTS) pins, enabling independent adjustment of the rise time and fall time at the MOSFET gate.
Applications
- Motor drivers
- Inverters
- Stepper motor drives
- DC/DC converter drives
- High-power bipolar transistors
- UPS
- Class-D power amplifiers
- Switching power supplies
- Pulse transformer drivers
- Brushless fans
Key features
- Source peak drive current up to 1A and sink peak drive current up to 1.2A
- Wide input voltage range: +3V - +30V
- Input pin IN withstands input voltage up to +30V
- Low input supply current:
- Logic 1 input — 200uA (typical)
- Logic 0 input — 0uA (typical)
- Independent source and sink output structure for independent rise and fall time adjustment
- SD pin enables cycle-by-cycle shutdown control for short-circuit or overcurrent protection circuits
- Package: SOP-8
