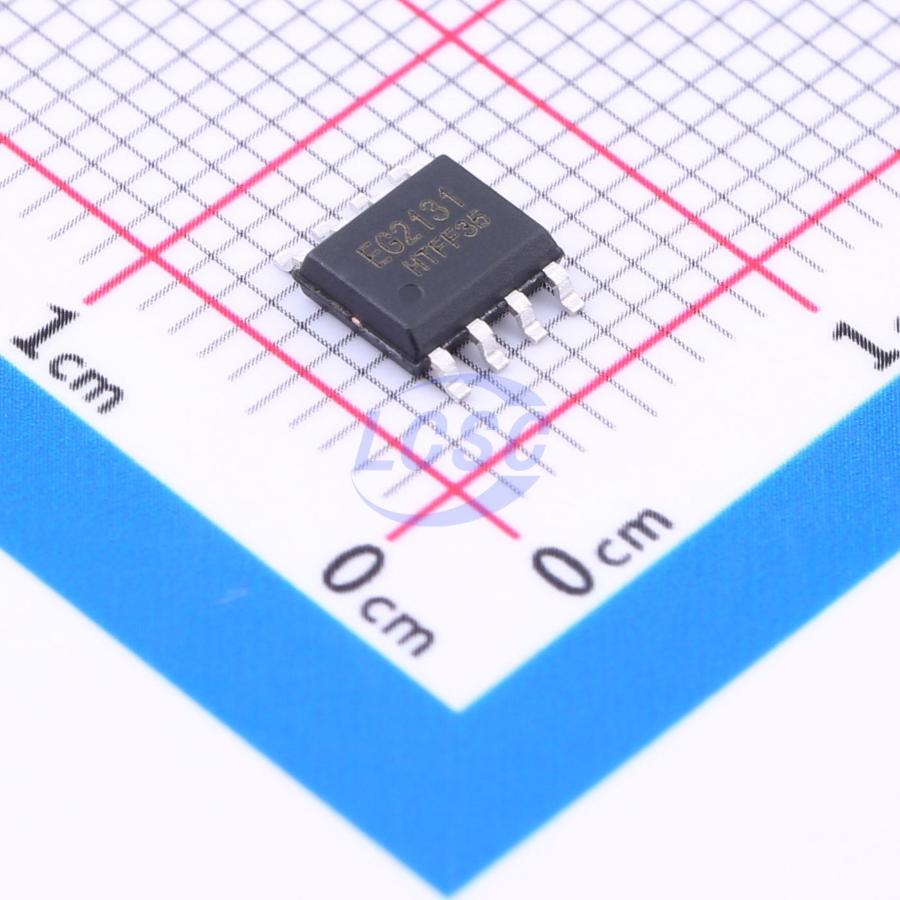

EG2131

EG2131 is a cost-effective gate driver IC dedicated to high-power MOSFETs and IGBTs. It integrates a logic signal input processing circuit, dead-time control circuit, undervoltage lockout circuit, lockout circuit, level shift circuit, pulse filter circuit, and output driver circuit, designed specifically for drive circuits in brushless motor controllers. The EG2131 supports a high-side operating voltage up to 300V, with a wide low-side Vcc supply voltage range of 11V~20V and quiescent current consumption below 5uA. The IC features a lockout function to prevent simultaneous conduction of the output power switches. The input channel HIN has a built-in 200K pull-down resistor, and LIN has a built-in 5V pull-up, ensuring both the high-side and low-side power MOSFETs remain off when inputs are floating. Output current capability is I0+/- 1/1.5A, housed in an SOP8 package.

Applications

• Mobile power bank high-voltage fast charging
• Switching power supply
• Variable frequency pump controller
• 300V buck switching power supply
• Electric vehicle controller
• Brushless motor driver
• High-voltage Class-D amplifier

Key features

• High-side floating bootstrap power supply design, withstand voltage up to 300V
• Compatible with 5V and 3.3V input voltage
• Maximum switching frequency up to 500KHz
• Low-side VCC undervoltage lockout output
• Output current capability I0+/- 1A/1.5A
• Built-in dead-time control circuit
• Integrated interlocking function, completely prevents simultaneous conduction of high-side and low-side outputs
• HIN input channel active high, controls high-side HO output
• LIN input channel active low, controls low-side LO output
• Minimal external components
• Quiescent current less than 5uA, ideal for battery-powered applications
• Package: SOP-8
