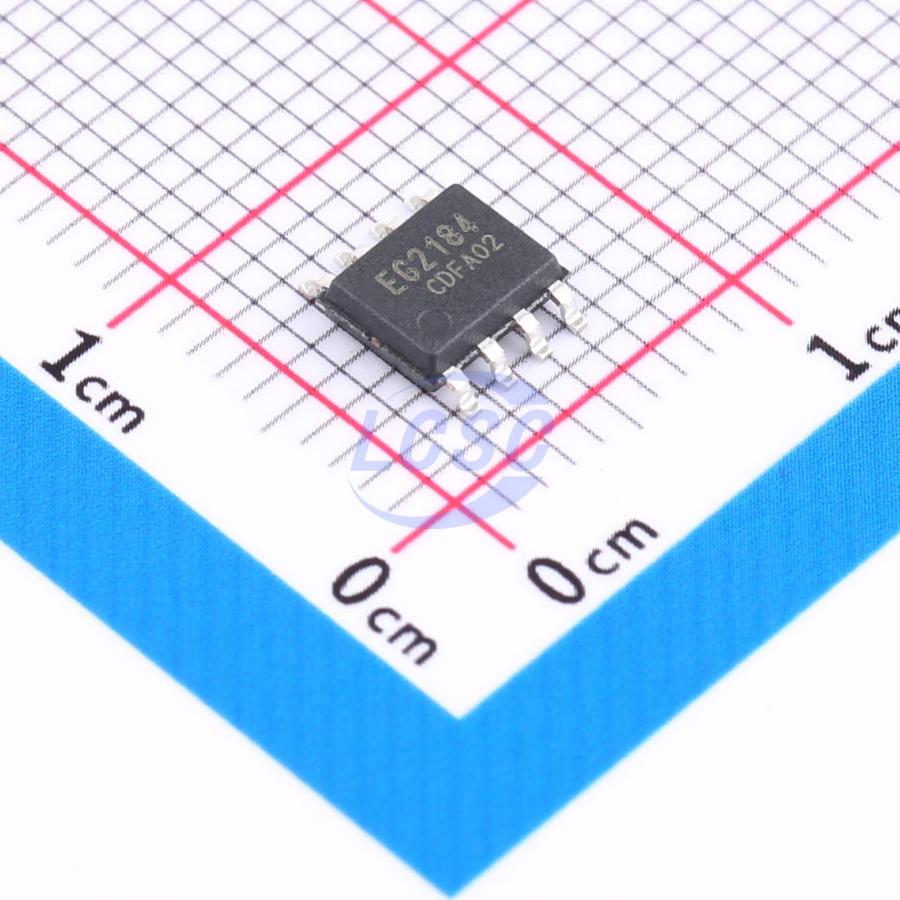

EG2184
Gate Driver IC MOSFET IGBT SOP-8
MOSFET driver IC with SD function
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2184
- Store part #
- C2929094
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,584 in stock
#C2929094
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.86 | ₹72.86 |
| 10+ | ₹57.03 | ₹570.30 |
| 30+ | ₹50.09 | ₹1,502.70 |
| 100+ | ₹41.63 | ₹4,163.00 |
| 500+ | ₹37.73 | ₹18,865.00 |
| 1,000+ | ₹35.56 | ₹35,560.00 |
1 × ₹72.86
₹72.86
excl. GST
₹85.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG2184
₹72.86 for 1 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Quiescent Current
- 300uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -45℃~+125℃
- Current - Output Low(IOL)
- 2.3A
- Rise Time
- 40ns
- Fall Time
- 20ns
- Features
- Enable shutdown;Dead-time control
- Current - Output High(IOH)
- 1.9A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
EG2184 is a cost-effective gate driver IC for MOSFETs and IGBTs with SD functionality. It integrates logic signal input processing, dead-time control, undervoltage lockout, level shift, pulse filtering, and output drive circuits, designed for brushless motor controllers and DC-DC power supply drive circuits. The EG2184 supports a high-side operating voltage up to 600V and a wide low-side VCC supply voltage range of 10V~20V. The input channel IN features a built-in 200K pull-down resistor, and SD features a built-in 200K pull-down resistor, keeping both high-side and low-side power MOSFETs off when inputs are floating. Output current capability is 10±1 - 1.9/2.3A, housed in an SOP8 package.
Applications
- Mobile power high-voltage fast-charging switching power supply
- Wireless charging driver
- Variable frequency water pump controller
- DC-DC power supply
- Brushless motor driver
- High-voltage Class-D amplifier
Key features
- High-side floating bootstrap power supply design, withstand voltage up to 600V
- Compatible with 5V and 3.3V input voltage
- Maximum switching frequency up to 500KHz
- Under-voltage lockout protection on VCC and VB supply rails
- Low-side VCC voltage range: 10V - 20V
- Output current capability: 10±1 - 1.9A/2.3A
- Built-in dead-time control circuit
- SD input channel active-low, shuts down HO and LO outputs
- Minimal external components
- Package: SOP8
- Lead-free, halogen-free, RoHS compliant
