JSCJDatasheet (PDF)

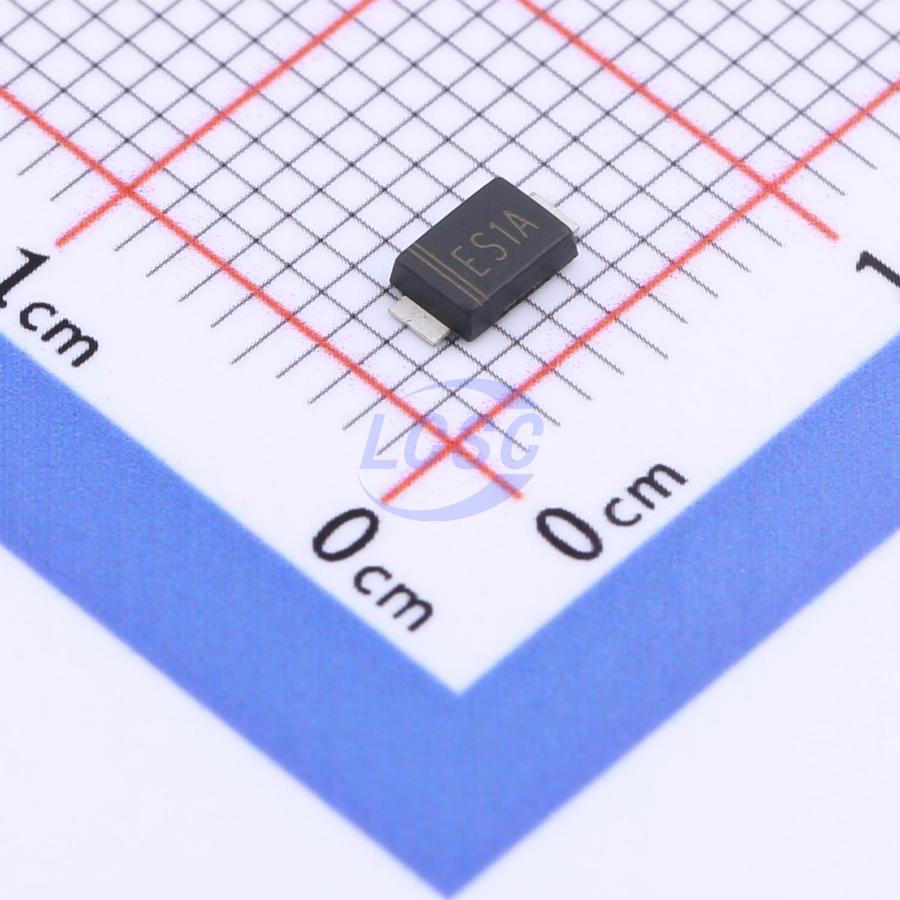

ES1AF
35ns 1 Independent 50V 950mV@1A 1A DO-214AD Single Diodes RoHS
DO-214ADROHS CompliantActive
Diode 50V 1A DO-214AD
- Manufacturer
- JSCJ
- Manufacturer part #
- ES1AF
- Store part #
- C3019324
- Package / case
- DO-214AD
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,400 in stock
#C3019324
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.84 | ₹56.80 |
| 200+ | ₹2.18 | ₹436.00 |
| 600+ | ₹1.81 | ₹1,086.00 |
| 3,000+ | ₹1.60 | ₹4,800.00 |
| 9,000+ | ₹1.40 | ₹12,600.00 |
| 21,000+ | ₹1.31 | ₹27,510.00 |
20 × ₹2.84
₹56.80
excl. GST
₹67.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ES1AF
₹56.80 for 20 + GST
Specifications
- Reverse Recovery Time (trr)
- 35ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Voltage - Forward(Vf@If)
- 950mV@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.062 g
Overview
Applications
- Rectifier
Key features
- IF(AV) 1A
- VRRM 50V - 600V
- High surge current capability
- Polarity: Color band denotes cathode
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ES1BF#C3019325JSCJ · DO-214AD | JSCJ | DO-214AD | 2,980 | ₹3.49 · 2,980 in stock | View |
 | ES1EF#C3019327JSCJ · DO-214AD | JSCJ | DO-214AD | 940 | ₹3.21 · 940 in stock | View |
 | ES1HF#C3019328JSCJ · DO-214AD | JSCJ | DO-214AD | 2,420 | ₹3.20 · 2,420 in stock | View |
 | ES2AF#C3019329JSCJ · DO-214AD | JSCJ | DO-214AD | 2,800 | ₹4.50 · 2,800 in stock | View |
 | ES2BF#C3019330JSCJ · DO-214AD | JSCJ | DO-214AD | 3,000 | ₹4.30 · 3,000 in stock | View |
