VISHAYDatasheet (PDF)

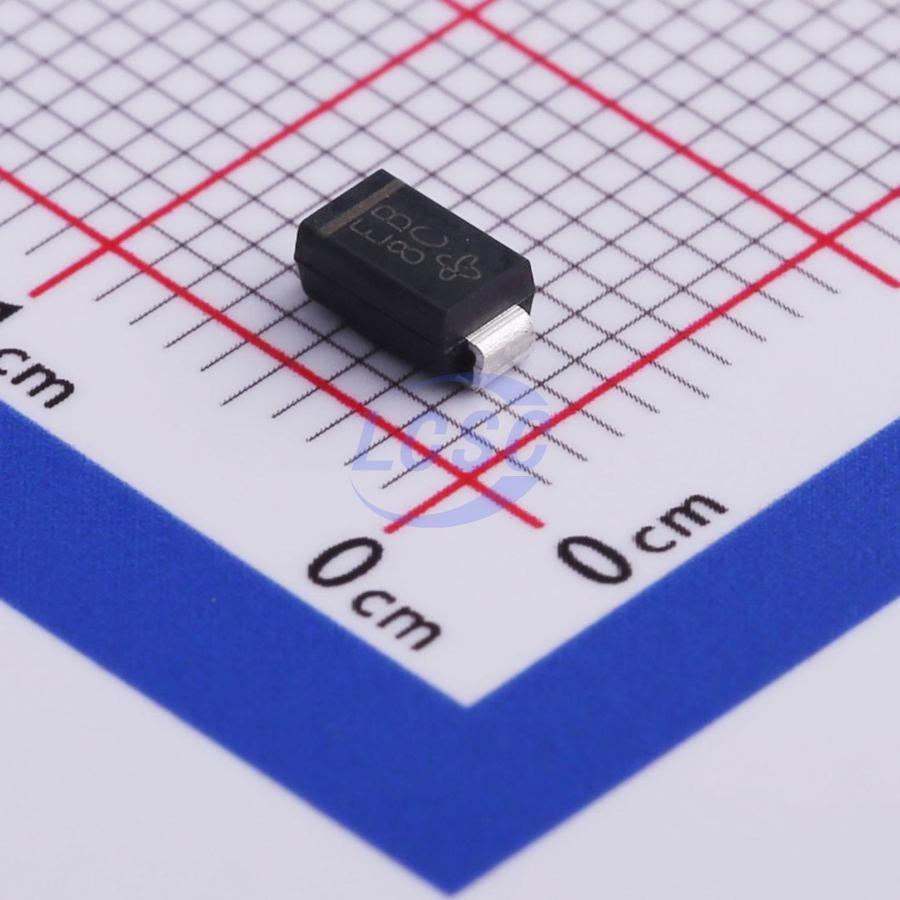

ES1B-E3/5AT
15ns 100V 1 Independent 920mV@1A 1A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
Diode 100V 1A SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- ES1B-E3/5AT
- Store part #
- C511483
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,180 in stock
#C511483
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.22 | ₹71.10 |
| 50+ | ₹11.25 | ₹562.50 |
| 150+ | ₹9.76 | ₹1,464.00 |
| 500+ | ₹8.65 | ₹4,325.00 |
| 2,500+ | ₹7.75 | ₹19,375.00 |
| 7,500+ | ₹7.32 | ₹54,900.00 |
5 × ₹14.22
₹71.10
excl. GST
₹83.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
ES1B-E3/5AT
₹71.10 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 15ns
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 920mV@1A
- Reverse Leakage Current (Ir)
- 5uA@100V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.079 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ES1DHE3_A/H#C2940059VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 18,125 | ₹15.06 · 18,125 in stock | View |
| ES1D-M3/61T#C2979777VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 309 | ₹75.45 · 309 in stock | View | |
 | ES1D#C84602onsemi · SMA(DO-214AC) | onsemi | SMA(DO-214AC) | 31,560 | ₹19.98 · 31,560 in stock | View |
 | ES1B-E3/61T#C36988VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 12,280 | ₹7.26 · 12,280 in stock | View |
 | ES1DHE3_A/I#C241886VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 2,310 | ₹18.07 · 2,310 in stock | View |
