VISHAYDatasheet (PDF)

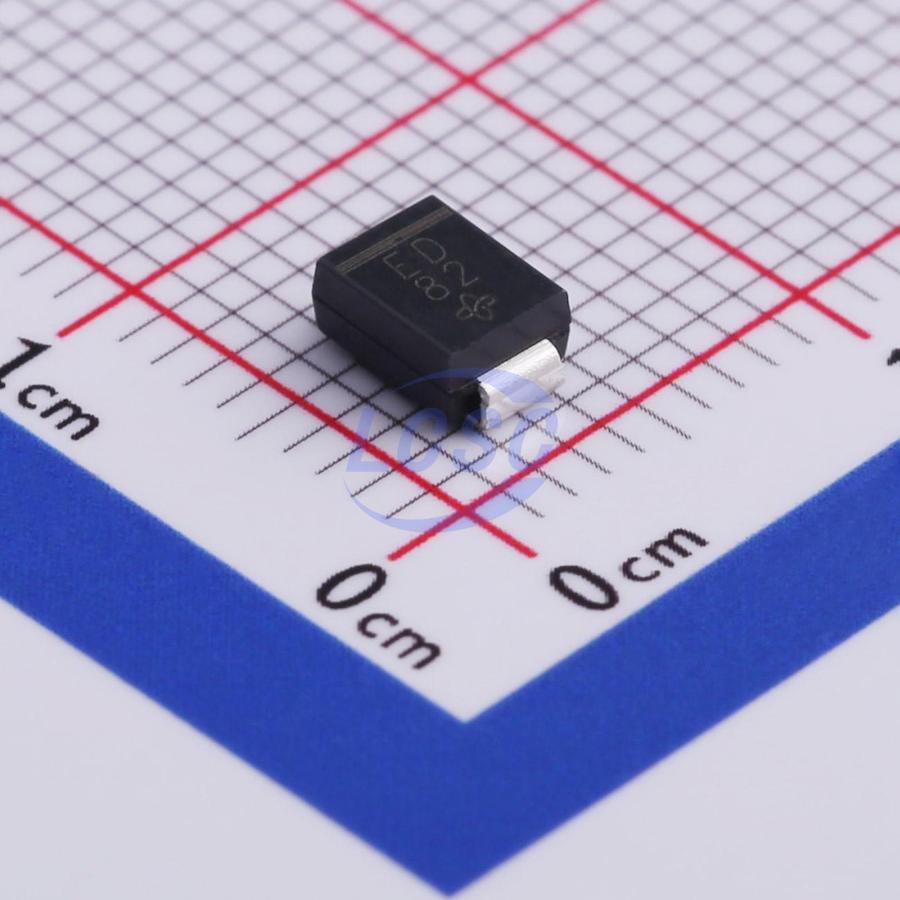

ES2D-E3/5BT
20ns 1 Independent 200V 900mV@2A 2A DO-214AA(SMB) Single Diodes RoHS
DO-214AA(SMB)ROHS3 CompliantActive
Diode 200V 2A DO-214AA(SMB)
- Manufacturer
- VISHAY
- Manufacturer part #
- ES2D-E3/5BT
- Store part #
- C511375
- Package / case
- DO-214AA(SMB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C511375
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.61 | ₹158.05 |
| 50+ | ₹24.87 | ₹1,243.50 |
| 150+ | ₹21.98 | ₹3,297.00 |
| 500+ | ₹18.36 | ₹9,180.00 |
| 3,200+ | ₹15.16 | ₹48,512.00 |
| 6,400+ | ₹14.20 | ₹90,880.00 |
5 × ₹31.61
₹158.05
excl. GST
₹186.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,200 per reel
ES2D-E3/5BT
₹158.05 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 20ns
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 900mV@2A
- Reverse Leakage Current (Ir)
- 10uA@200V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,200 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.127 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ES2DHE3_A/I#C467537VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | 48 | ₹52.56 · 48 in stock | View |
 | ES2D-E3/52T#C183019VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | 63,720 | ₹21.37 · 63,720 in stock | View |
 | ES2DHE3_A/H#C968579VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | 50 | ₹28.63 · 50 in stock | View |
| ES2D(SMB)#C22374923DOWO · SMB | DOWO | SMB | 2,980 | ₹3.04 · 2,980 in stock | View | |
 | ES2D#C24419209Taiwan Semiconductor · DO-214AA | Taiwan Semiconductor | DO-214AA | 5,350 | ₹20.03 · 5,350 in stock | View |
