VISHAYDatasheet (PDF)

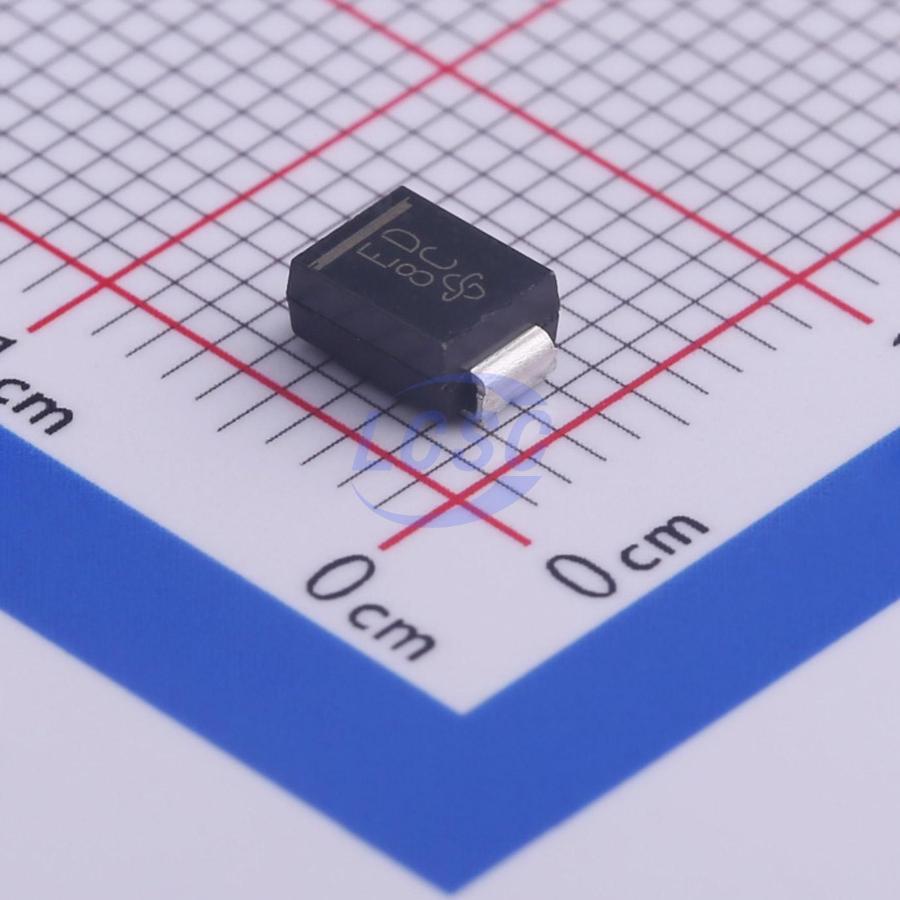

ES2DHE3_A/I
20ns 1 Independent 200V 900mV@2A 2A DO-214AA(SMB) Single Diodes RoHS
DO-214AA(SMB)ROHS3 CompliantActive
Diode 200V 2A DO-214AA(SMB)
- Manufacturer
- VISHAY
- Manufacturer part #
- ES2DHE3_A/I
- Store part #
- C467537
- Package / case
- DO-214AA(SMB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C467537
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.56 | ₹52.56 |
| 10+ | ₹41.00 | ₹410.00 |
| 30+ | ₹36.21 | ₹1,086.30 |
| 100+ | ₹30.10 | ₹3,010.00 |
| 500+ | ₹27.48 | ₹13,740.00 |
| 1,000+ | ₹25.73 | ₹25,730.00 |
1 × ₹52.56
₹52.56
excl. GST
₹62.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,200 per reel
ES2DHE3_A/I
₹52.56 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 20ns
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 900mV@2A
- Reverse Leakage Current (Ir)
- 10uA@200V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,200 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
Applications
- For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive, and telecommunication.
Key features
- Glass passivated pellet chip junction
- Ideal for automated placement RoHS
- Ultrafast recovery times for high efficiency COMPLIANT HALOGEN
- Low forward voltage, low power losses FREE Available
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ES2D-E3/5BT#C511375VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | 2,560 | ₹31.61 · 2,560 in stock | View |
 | ES2D-E3/52T#C183019VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | 63,720 | ₹21.37 · 63,720 in stock | View |
 | ES2DHE3_A/H#C968579VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | 50 | ₹28.63 · 50 in stock | View |
| ES2D(SMB)#C22374923DOWO · SMB | DOWO | SMB | 2,980 | ₹3.04 · 2,980 in stock | View | |
 | ES2D#C24419209Taiwan Semiconductor · DO-214AA | Taiwan Semiconductor | DO-214AA | 5,350 | ₹20.03 · 5,350 in stock | View |
