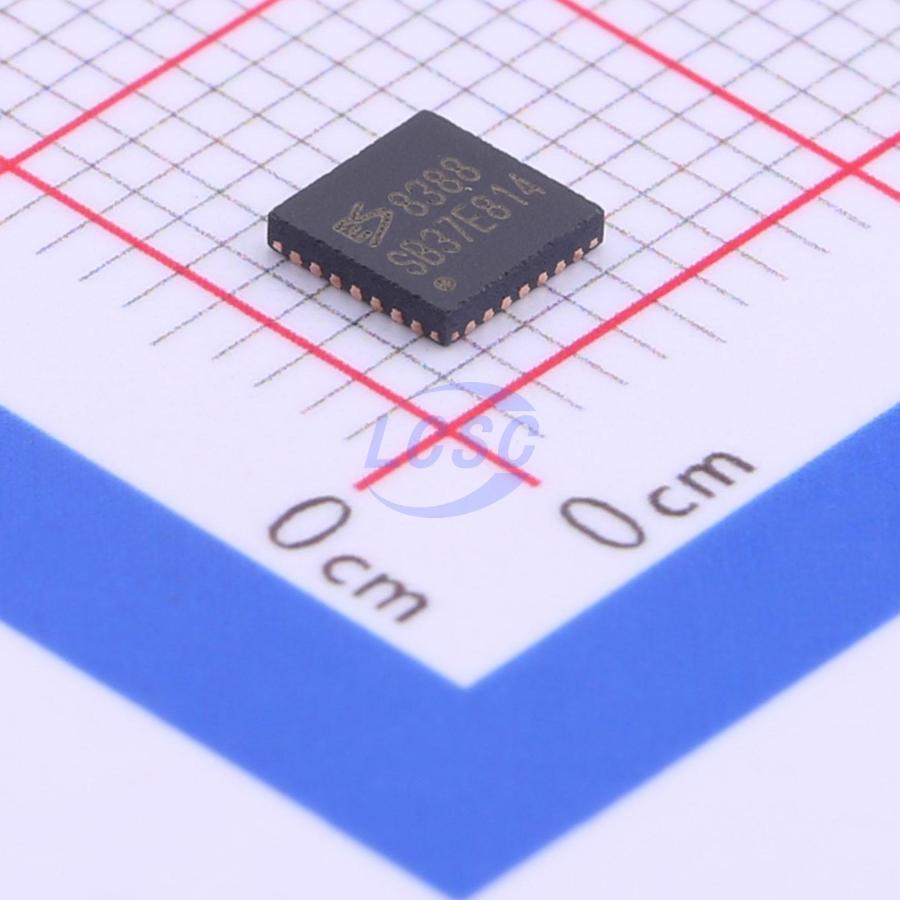

ES8388
Programmable gain 2 1.7V~3.6V QFN-28-EP(4x4) ADCs/DACs - Special Purpose RoHS
QFN-28-EP(4x4)ROHS CompliantActive
Low Power Stereo Audio CODEC With Headphone Amplifier
- Manufacturer
- Everest-semi(Everest Semiconductor)
- Manufacturer part #
- ES8388
- Store part #
- C365736
- Package / case
- QFN-28-EP(4x4)
- Category
- ADCs/DACs - Special Purpose
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46,254 in stock
#C365736
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.49 | ₹147.49 |
| 10+ | ₹124.43 | ₹1,244.30 |
| 30+ | ₹108.33 | ₹3,249.90 |
| 100+ | ₹94.85 | ₹9,485.00 |
| 500+ | ₹76.36 | ₹38,180.00 |
| 1,000+ | ₹73.97 | ₹73,970.00 |
1 × ₹147.49
₹147.49
excl. GST
₹174.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ES8388
₹147.49 for 1 + GST
Specifications
- Features
- Programmable gain
- Number of Channels
- 2
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI;I2C
- ChipType
- Audio Analog-to-Digital Converter;Audio Decoder
- Voltage - Supply
- 1.7V~3.6V
- ADC architecture
- Sigma-Delta
- Resolution (Bits)
- 24;96000Hz
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
ES8388 is a high performance, low power and low cost audio CODEC. It consists of 2-ch ADC, 2-ch DAC, microphone amplifier, headphone amplifier, digital sound effects, and analog mixing and gain functions. The device uses advanced multi-bit delta-sigma modulation technique to convert data between digital and analog. The multi-bit delta-sigma modulators make the device with low sensitivity to clock jitter and low out of band noise.
Applications
- MID
- MP3, MP4, PMP
- Wireless audio
- Digital camera, camcorder
- GPS
- Bluetooth
- Portable audio devices
Key features
- 24-bit, 8 kHz to 96 kHz sampling frequency
- 95 dB dynamic range, 95 dB signal to noise ratio, -85 dB THD+N
- Stereo or mono microphone interface with microphone amplifier
- Auto level control and noise gate
- 2-to-1 analog input selection
- Various analog input mixing and gains
- 24-bit, 8 kHz to 96 kHz sampling frequency
- 96 dB dynamic range, 96 dB signal to noise ratio, -83 dB THD+N
- 40 mW headphone amplifier, pop noise free
- Headphone capless mode
- Stereo enhancement
- Bass and Treble
- Various analog output mixing and gains
- 1.8V to 3.3V operation
- 7 mW playback; 16 mW playback and record
- I2C or SPI uC interface
- 256Fs, 384Fs, USB 12 MHz or 24 MHz
- Master or slave serial port I2S, Left Justified, DSP/PCM Mode
