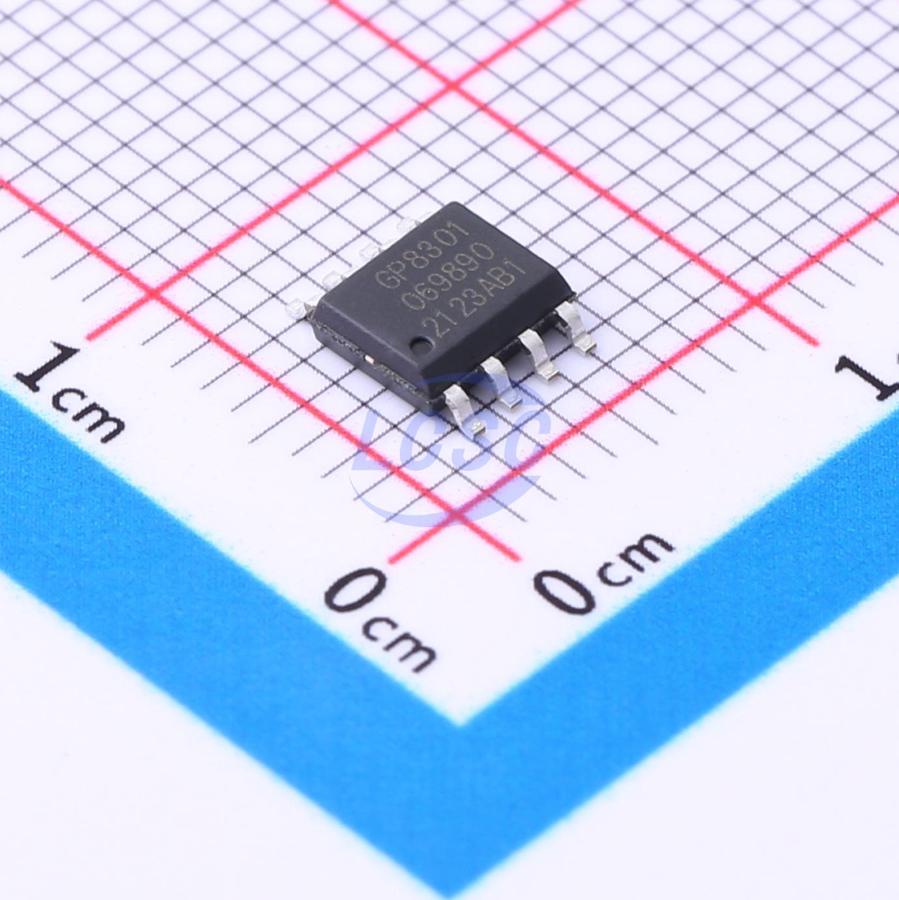

GP8301-TC50-EW

1 18V~36V ESOP-8 ADCs/DACs - Special Purpose RoHS

ESOP-8ROHS CompliantActive

PAC (PWM to Analog Converter) 0%-100%PWM to 0-20mA

Manufacturer: Guestgood
Manufacturer part #: GP8301-TC50-EW
Store part #: C2856294
Package / case: ESOP-8
Category: ADCs/DACs - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

13,508 in stock

#C2856294

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹209.48	₹209.48
10+	₹170.11	₹1,701.10
30+	₹148.36	₹4,450.80
100+	₹123.78	₹12,378.00
500+	₹108.99	₹54,495.00
1,000+	₹104.20	₹1,04,200.00

Quantity (min 1)

1 × ₹209.48

₹209.48

excl. GST

₹247.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

GP8301-TC50-EW

₹209.48 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 1
Operating Temperature: -40℃~+85℃
ChipType: PWM-to-Analog Converter
Voltage - Supply: 18V~36V
Quiescent Current: 2500uA
Resolution (Bits): 12;-

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.13 g

Overview

GP8301 is a PWM-to-analog signal converter that linearly converts PWM signals with duty cycles from 0% to 100% into a 0–20mA analog current output, with an output current error of less than 0.1%.

Applications

0/4-20mA transmitter
PLC
Industrial control
Sensor

Key features

Converts 0% to 100% duty cycle PWM input signal to 0–20mA analog current output with linear conversion.
Built-in high-precision 12-bit DAC.
Open-circuit output alarm function.
Output current formula: IOUT = Duty Cycle × 5V × 10 / Rset.
Input PWM signal frequency range: 50Hz to 50KHz.
Input PWM signal high level: 2.7V to 5.5V.
Output error: 0.2% (typical).
Output voltage linearity error: 0.1% (typical).
Temperature coefficient: 50PPM/℃, 25PPM/℃.
Supply voltage: 18V to 36V.
Power consumption: <4mA.
Start-up time: <2ms.
Operating temperature: -40℃ to 85℃.
