TECH PUBLICDatasheet (PDF)

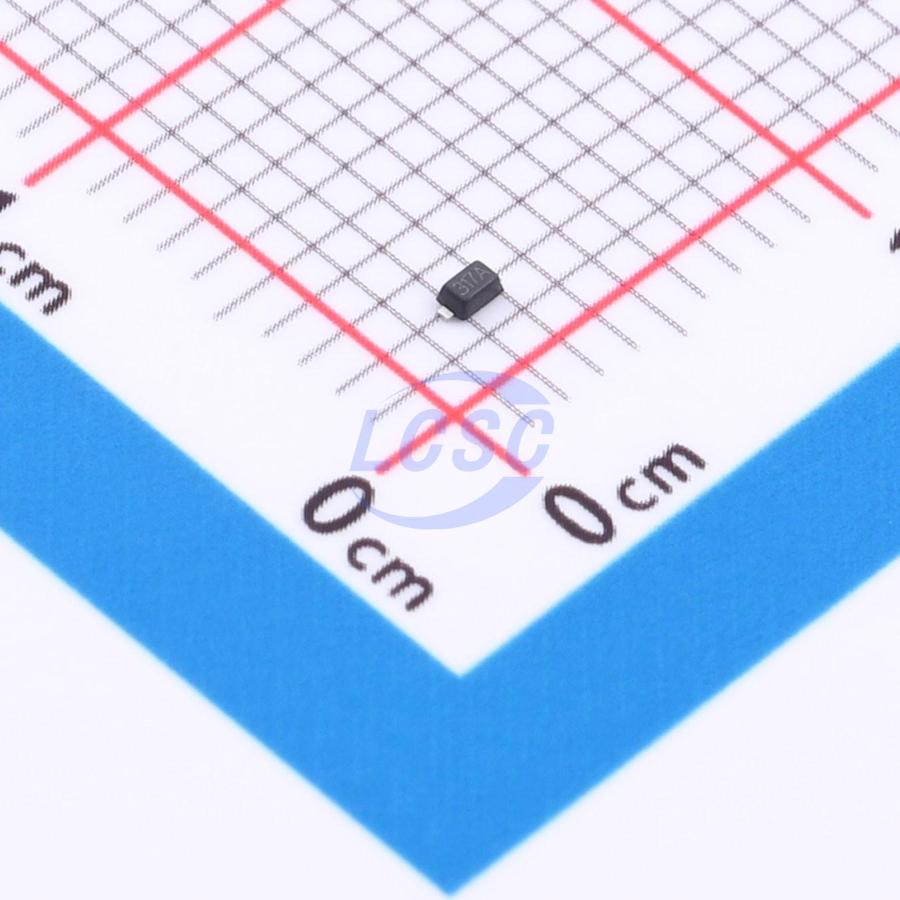

ESD03V32D-LC-0603
18V 17A 310W@8/20us 4.2V 3.3V SOD-523 TVS Diodes
SOD-523RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD03V32D-LC-0603
- Store part #
- C53100526
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,020 in stock
#C53100526
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.62 | ₹53.10 |
| 50+ | ₹8.35 | ₹417.50 |
| 150+ | ₹7.22 | ₹1,083.00 |
| 500+ | ₹6.36 | ₹3,180.00 |
| 3,000+ | ₹5.69 | ₹17,070.00 |
| 6,000+ | ₹5.34 | ₹32,040.00 |
5 × ₹10.62
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD03V32D-LC-0603
₹53.10 for 5 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 17A
- Peak Pulse Power Dissipation (Ppp)
- 310W@8/20us
- Voltage - Breakdown
- 4.2V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Applications
- Mobile Phones & Accessories
- Personal Digital Assistants
- Laptops & Handheld Devices
- Portable Instruments
- Peripheral Devices
Key features
- Low operating voltage: 3.3V
- Ultra-low capacitance: 0.8pF (typical)
- Ultra-low leakage current: nA-level
- Low clamping voltage
- Compliant with IEC 61000-4-2 (ESD) immunity test standard: Air discharge: ±30kV; Contact discharge: ±30kV
- Compliant with IEC 61000-4-4 (EFT) standard: 40A (5/50ns)
- 2-pin leadless package
- Typical response time < 1 ns
