MSKSEMIDatasheet (PDF)

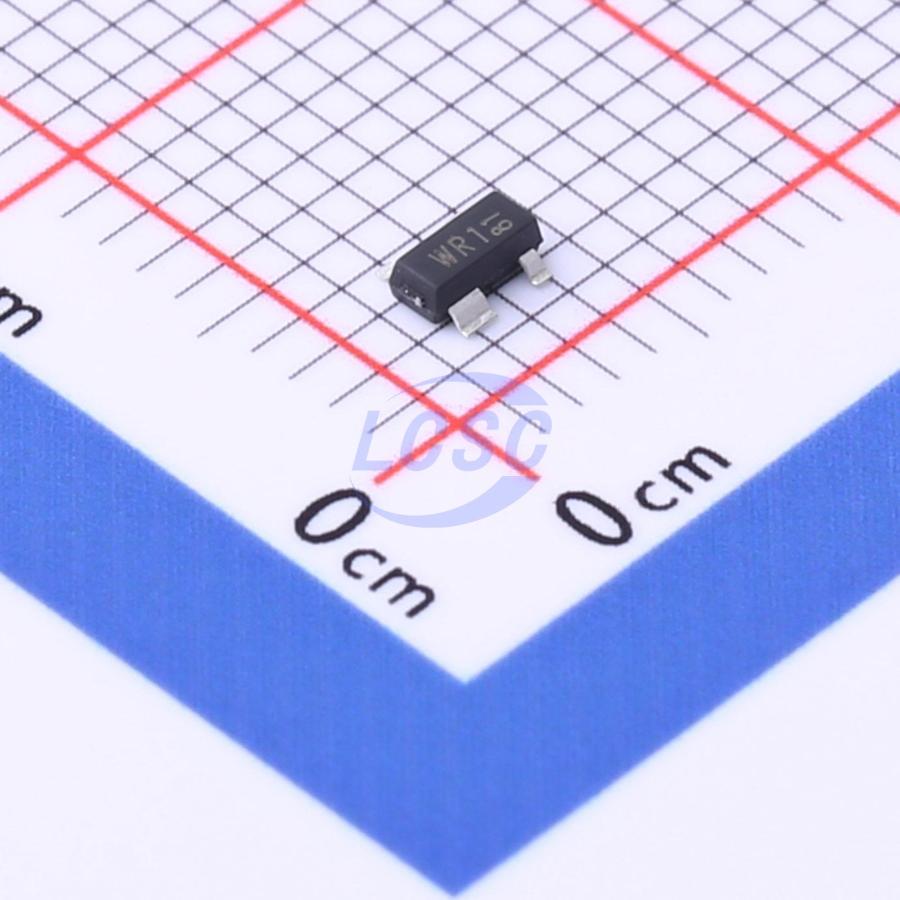

ESD05V14T-MS
24VC Clamp 5A Ipp ESD DIODE SOT-143
SOT-143RoHSActive
ESD DIODE 5VWM 24VC SOT-143
- Manufacturer
- MSKSEMI
- Manufacturer part #
- ESD05V14T-MS
- Store part #
- C2847042
- Package / case
- SOT-143
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,480 in stock
#C2847042
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.30 | ₹81.50 |
| 50+ | ₹13.11 | ₹655.50 |
| 150+ | ₹11.51 | ₹1,726.50 |
| 500+ | ₹10.31 | ₹5,155.00 |
| 3,000+ | ₹7.87 | ₹23,610.00 |
| 6,000+ | ₹7.40 | ₹44,400.00 |
5 × ₹16.30
₹81.50
excl. GST
₹96.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD05V14T-MS
₹81.50 for 5 + GST
Specifications
- Clamping Voltage
- 24V
- Peak Pulse Current (Ipp)
- 5A
- Peak Pulse Power Dissipation (Ppp)
- 350W
- Voltage - Breakdown
- 8.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
Applications
- USB 2.0
- Ethernet
- Laptops, desktops, and servers
- Video line protection
Key features
- 60W peak pulse power (8/20μs pulse width)
- Micro SOT-143 package
- Bidirectional configuration available
- Solid-state silicon avalanche technology
- Low clamping voltage
- Low leakage current
- Low capacitance (typical I/O-to-I/O junction capacitance: 0.45pF)
- Single data/power line protection, compliant with:
- IEC 61000-4-2: Contact discharge ±20kV, air discharge ±20kV
- IEC 61000-4-4 (EFT): 40A (5/50ns)
- IEC 61000-4-5 (Surge): 4A (8/20μs)
