TECH PUBLICDatasheet (PDF)

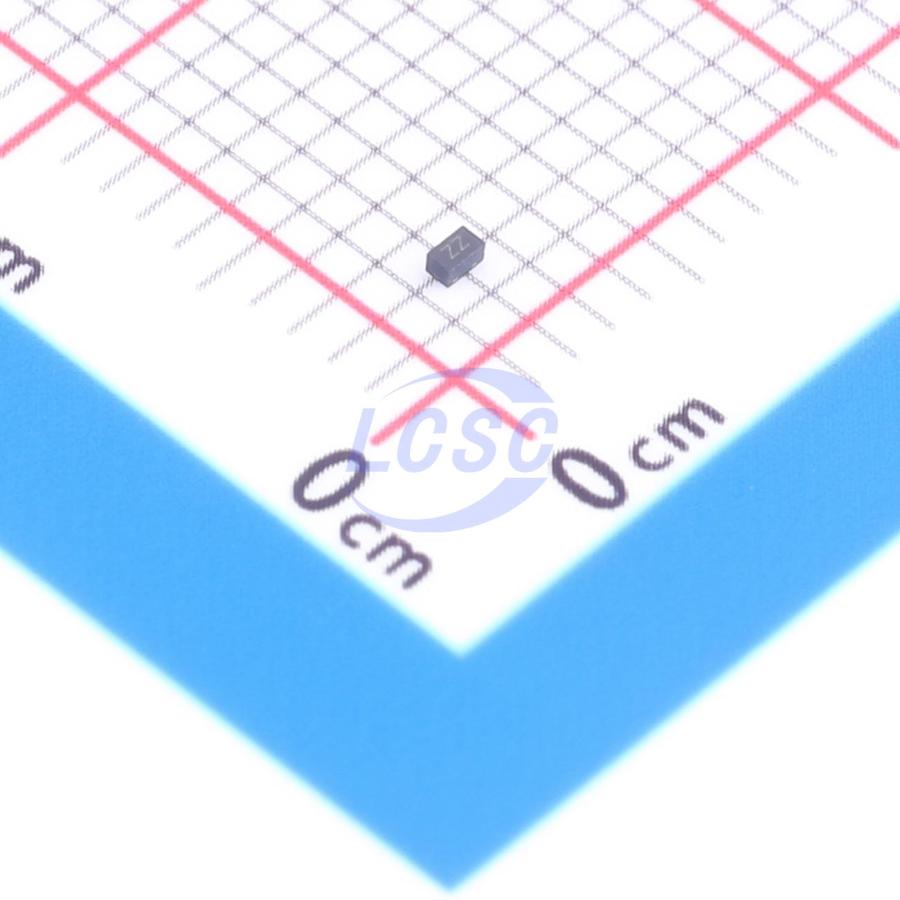

ESD103-B1-02EL-TP
27V 21V Bidirectional 15V DFN1006-2L TVS Diodes
DFN1006-2LRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD103-B1-02EL-TP
- Store part #
- C54561860
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,150 in stock
#C54561860
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.62 | ₹53.10 |
| 50+ | ₹8.35 | ₹417.50 |
| 150+ | ₹7.22 | ₹1,083.00 |
| 500+ | ₹6.36 | ₹3,180.00 |
| 3,000+ | ₹5.69 | ₹17,070.00 |
| 6,000+ | ₹5.34 | ₹32,040.00 |
5 × ₹10.62
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD103-B1-02EL-TP
₹53.10 for 5 + GST
Specifications
- Clamping Voltage
- 27V
- Operating Temperature
- -55℃~+125℃
- Voltage - Breakdown
- 21V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
Applications
- Mobile phones & accessories
- Digital Video Interface (DVI)
- DisplayPort
- MDDI port
- USB port
Key features
- Ultra-compact package: 1.0×0.6×0.5mm
- Ultra-low capacitance: 0.35pF typical
- Ultra-low leakage: nanoamp level
- Low operating voltage: ±15V
- Low clamping voltage
- 2-pin lead-free package
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test: Air discharge: ±20kV, Contact discharge: ±15kV
- RoHS compliant
- Pin plating: nickel-palladium-gold
