Infineon

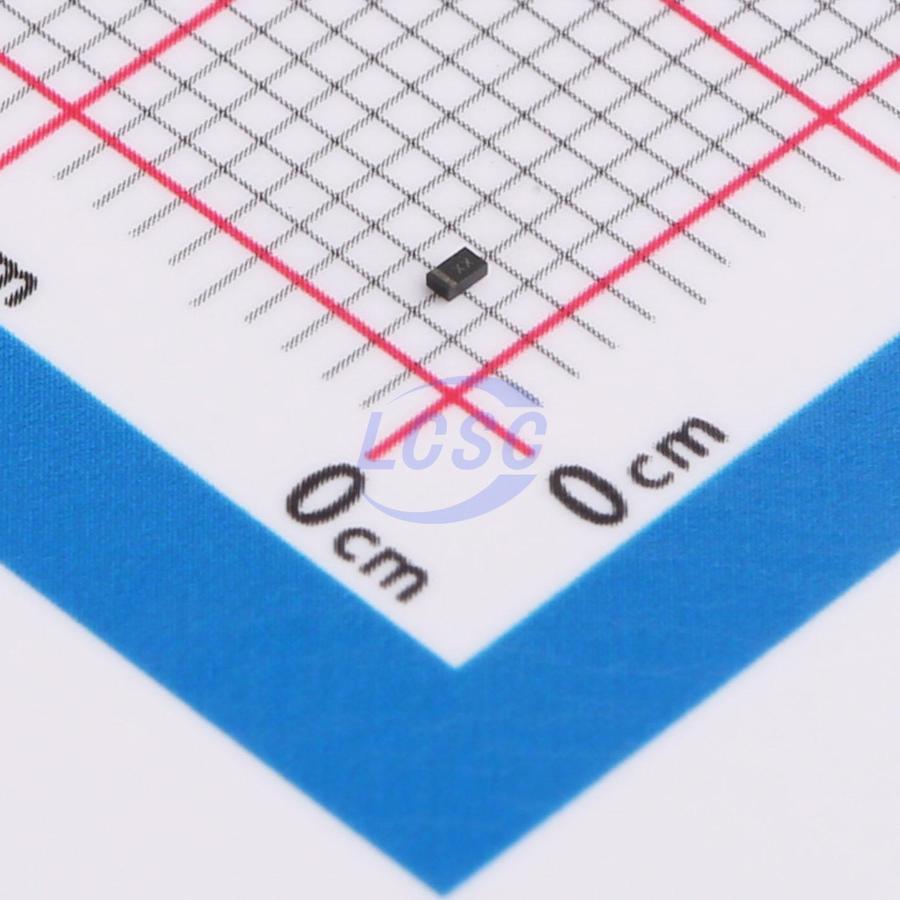

ESD110B102ELE6327

29VC Clamp 2A@8/20us Ipp ESD DIODE SOD-882

SOD-882ROHS3 CompliantSold out at source

ESD DIODE 18.5VWM 29VC SOD-882

Manufacturer: Infineon
Manufacturer part #: ESD110B102ELE6327
Store part #: C3707230
Package / case: SOD-882
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C3707230

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹41.70	₹208.50
50+	₹33.18	₹1,659.00
150+	₹29.53	₹4,429.50
500+	₹24.98	₹12,490.00
2,500+	₹22.95	₹57,375.00
5,000+	₹21.74	₹1,08,700.00

Quantity (min 5, multiples of 5)

5 × ₹41.70

₹208.50

excl. GST

₹246.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 15,000 per reel

ESD110B102ELE6327

₹208.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 29V
Operating Temperature: -40℃~+125℃
Peak Pulse Current (Ipp): 2A@8/20us
Peak Pulse Power Dissipation (Ppp): 58W
Number of Channels: 1
Voltage - Breakdown: 20V
type: ESD
Reverse Leakage Current (Ir): 1nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 18.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Sold out at source
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 15,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.012 g

Overview

Applications

ESD Protection of RF signal lines in Near Field Communication (NFC) applications

Key features

ESD / transient protection according to:
IEC61000-4-2 (ESD): ±15 kV (air), ±12 kV (contact)
IEC61000-4-5 (Surge): ±2 A (tp = 8/20 μs)
Bi-directional, working voltage up to VRWM = ±18.5 V (AC)
Ultra-low capacitance: CL = 0.3 pF (typical)
Low clamping voltage: VCL = 28 V (typical) at ITLP = 16 A
Very low reverse current: IR < 1 nA (typical)
Pb-free (RoHS compliant) and halogen free package
