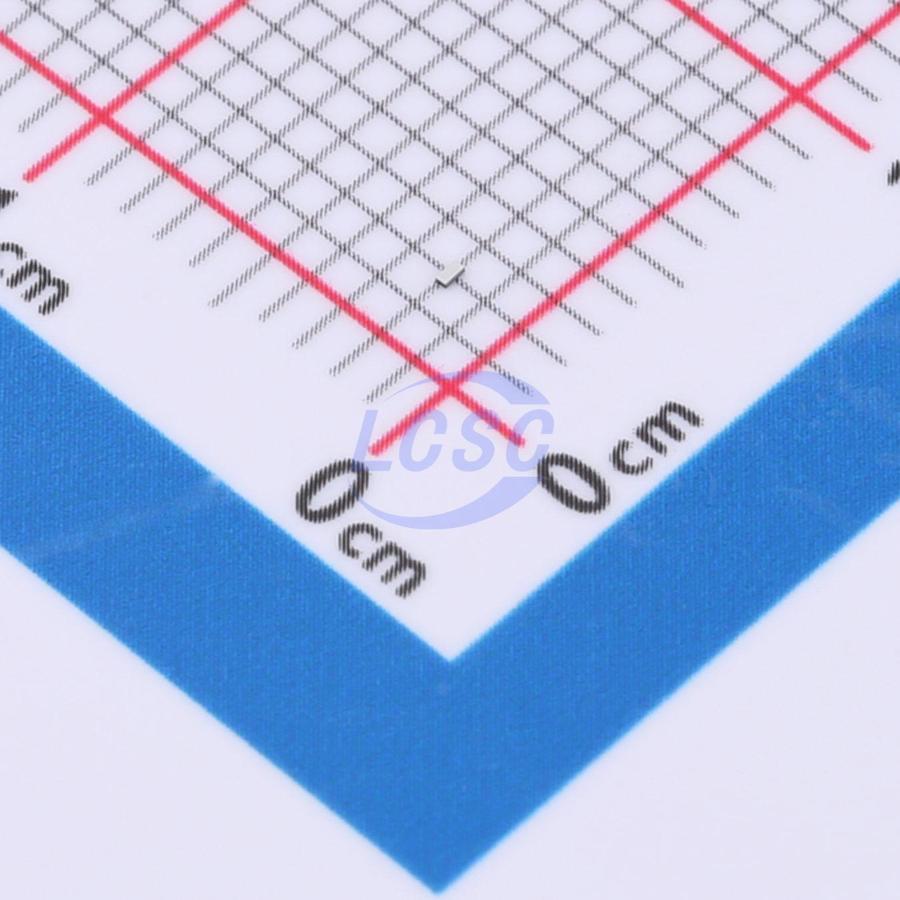

InfineonDatasheet (PDF)
ESD111B1W0201E6327XTSA1
11VC Clamp 2A@8/20us Ipp ESD DIODE 0201
0201ROHS3 CompliantActive
ESD DIODE 5.5VWM 11VC 0201
- Manufacturer
- Infineon
- Manufacturer part #
- ESD111B1W0201E6327XTSA1
- Store part #
- C3705550
- Package / case
- 0201
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C3705550
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.80 | ₹59.00 |
| 50+ | ₹11.54 | ₹577.00 |
| 150+ | ₹11.36 | ₹1,704.00 |
| 500+ | ₹11.21 | ₹5,605.00 |
5 × ₹11.80
₹59.00
excl. GST
₹69.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
ESD111B1W0201E6327XTSA1
₹59.00 for 5 + GST
Specifications
- Clamping Voltage
- 11V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 22W
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 20nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
This Infineon ESD (electrostatic discharge) protection device has a bi- directional and symmetric I/V characteristic with excellent clamping performance and high linearity.
Applications
- Super high speed interface RF antenna
Key features
- ESD / transient protection according to:
- IEC61000 - 4 - 2 (ESD): ±14 kV (air) / ±11 kV (contact)
- IEC61000 - 4 - 4 (EFT): ±1 kV / ±20 A (5/50 ns)
- IEC61000 - 4 - 5 (Surge): ±2 A (8/20 μs)
- Bi - directional maximum working voltage: VWM = ±5.5 V
- Line capacitance: CL = 0.12 pF (typical) at f = 2.5 GHz
- Clamping voltage: Vcl = 30 V (typical) at ITLP = 16 A with Rdyn = 1.29 Ω
- Very low leakage current: Ic < 1 nA (typical)
- Small form factor SMD size 0201, low profile (0.58 × 0.28 × 0.15 mm³)
