InfineonDatasheet (PDF)

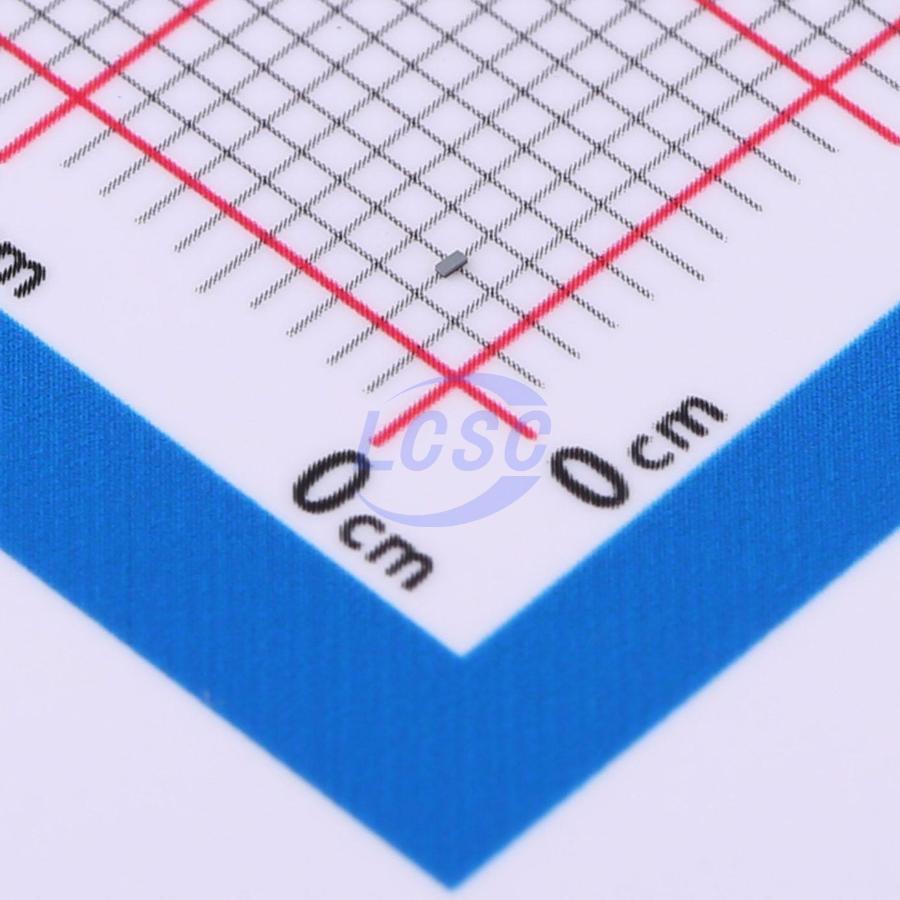

ESD144B1W0201E6327XTSA1
20VC Clamp 3.5A@8/20us Ipp ESD DIODE 0201
0201ROHS3 CompliantActive
ESD DIODE 18VWM 20VC 0201
- Manufacturer
- Infineon
- Manufacturer part #
- ESD144B1W0201E6327XTSA1
- Store part #
- C1975764
- Package / case
- 0201
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C1975764
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.57 | ₹105.70 |
| 100+ | ₹8.60 | ₹860.00 |
| 300+ | ₹7.62 | ₹2,286.00 |
| 1,000+ | ₹6.88 | ₹6,880.00 |
| 5,000+ | ₹6.30 | ₹31,500.00 |
| 15,000+ | ₹5.99 | ₹89,850.00 |
10 × ₹10.57
₹105.70
excl. GST
₹124.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
ESD144B1W0201E6327XTSA1
₹105.70 for 10 + GST
Specifications
- Clamping Voltage
- 20V
- Peak Pulse Current (Ipp)
- 3.5A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 18.5V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 30nA
- Reverse Stand-Off Voltage (Vrwm)
- 18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.05 g
Overview
New generation ESD protection diodes. Chip scale package TVS for wireless, computing & consumer applications. Infineon offers a comprehensive portfolio of diodes designed for ESD (Electrostatic Discharge) protection of wireless, computing and consumer applications.
Applications
- Smartphones
- Wearable devices & accessories
- Tablet & laptop computers
- Modules & embedded
Key features
- ESD absorption capability of up to ±30 kV (exceeds IEC 61000 - 4 - 2 standard)
- Surge absorption capability of up to ±12 A (IEC 61000 - 4 - 5 standard)
- Ultra - low dynamic resistance
- Safe and stable clamping voltage
- Fast response times below 1 ns
- For signal voltage levels of ±3.3 V, ±5.5 V, ±8 V, ±18 V, ±22 V
- Low capacitance series for optimal high speed signal integrity
- Ultra - low leakage current for longer battery duration
- Small package size down to 0.43×0.23 mm for optimal space saving on the PCB
- Ultra - low profile of up to 0.15 mm height for both 01005 and 0201 packages
