TECH PUBLICDatasheet (PDF)

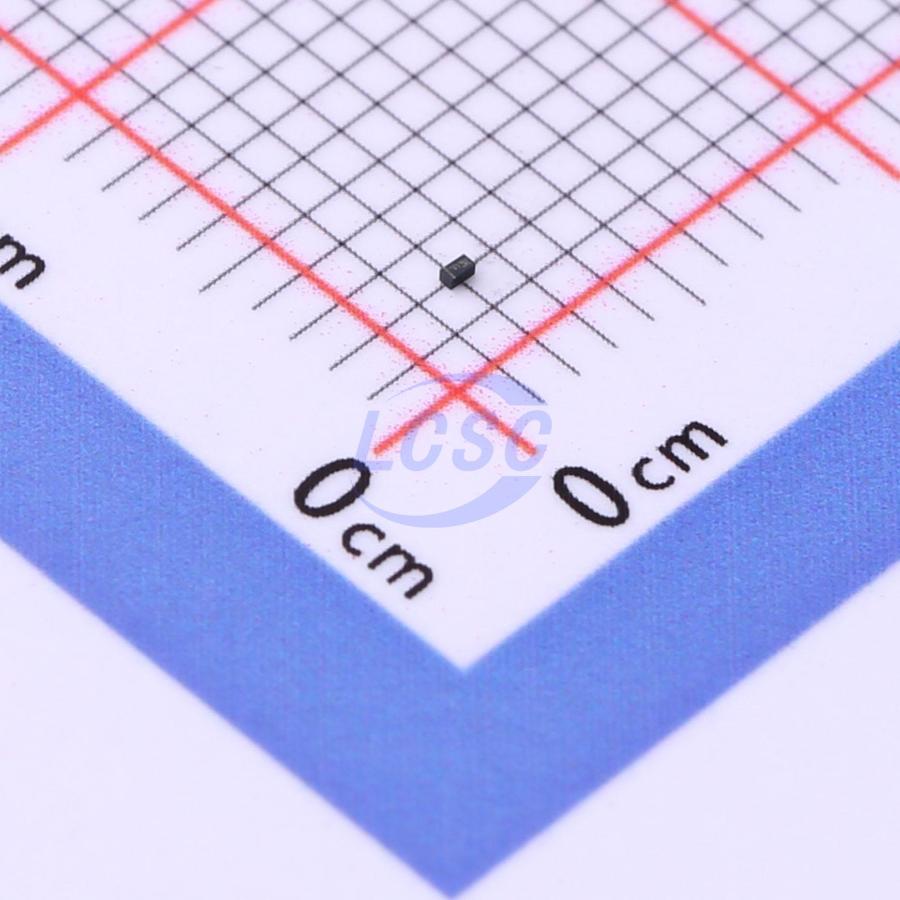

ESD203-B1-02ELS-TP
nan
DFN0603-2RoHSActive
12VWM 20VC DFN0603-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD203-B1-02ELS-TP
- Store part #
- C3040604
- Package / case
- DFN0603-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,480 in stock
#C3040604
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.76 | ₹57.60 |
| 100+ | ₹4.60 | ₹460.00 |
| 300+ | ₹4.04 | ₹1,212.00 |
| 1,000+ | ₹3.60 | ₹3,600.00 |
| 5,000+ | ₹2.86 | ₹14,300.00 |
| 10,000+ | ₹2.69 | ₹26,900.00 |
10 × ₹5.76
₹57.60
excl. GST
₹67.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ESD203-B1-02ELS-TP
₹57.60 for 10 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 7A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 15V
- type
- ESD
- Reverse Leakage Current (Ir)
- 70nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.007 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
Key features
- Ultra small package: 0.6x0.3x0.3mm
- Ultralow capacitance: 9pF typical
- Ultra low leakage: nA level
- Low operating voltage: ±12V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 5 (Lightning) 7A (8/20μs)
- These are Pb - Free Devices
- Response Time is Typically < 1 ns
