InfineonDatasheet (PDF)

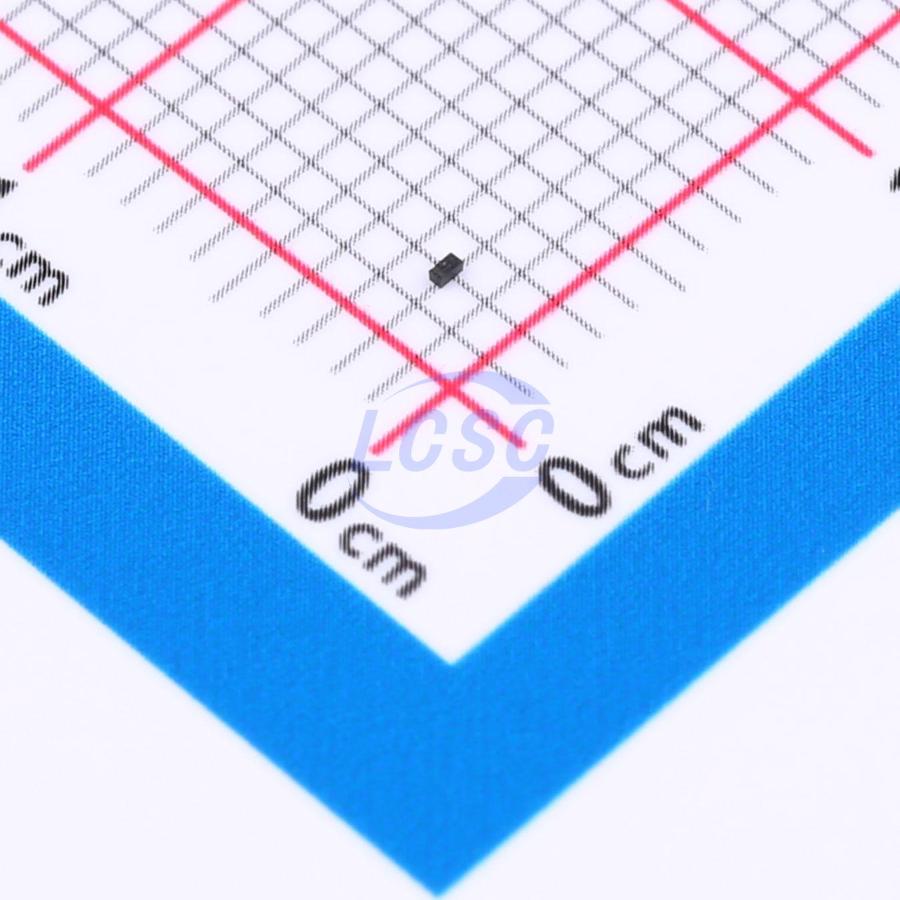

ESD203B102ELSE6327XTSA1
23VC Clamp 5A@8/20us Ipp ESD DIODE 0201
0201ROHS3 CompliantActive
ESD DIODE 13.2VWM 23VC 0201
- Manufacturer
- Infineon
- Manufacturer part #
- ESD203B102ELSE6327XTSA1
- Store part #
- C3709528
- Package / case
- 0201
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C3709528
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.22 | ₹59.22 |
| 10+ | ₹57.91 | ₹579.10 |
| 30+ | ₹57.03 | ₹1,710.90 |
| 100+ | ₹56.17 | ₹5,617.00 |
1 × ₹59.22
₹59.22
excl. GST
₹69.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
ESD203B102ELSE6327XTSA1
₹59.22 for 1 + GST
Specifications
- Clamping Voltage
- 23V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 115W
- Number of Channels
- 1
- Voltage - Breakdown
- 13.7V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 13.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.087 g
Overview
Applications
- ESD protection of keypad, touchpad, buttons, audio lines, ect.
Key features
- ESD/Transient/Surge protection of one data / VRWM line exceeding standard
- IEC61000-4-2 (ESD): ± 30kV (air/contact discharge)
- IEC61000-4-4 (EFT): ± 50 A (5/50 ns)
- IEC61000-4-5 (surge): ± 5 A (8/20 μs)
- Bi-directional symmetrical working voltage: VRWM = ± 13.2V
- Low capacitance: CL = 6 pF (typ.)
- Very low ESD clamping voltage, very low dynamic resistance: RDYN = 0.29Ω (typ.)
- Pb-free (RoHS compliant) and halogen free package
