InfineonDatasheet (PDF)

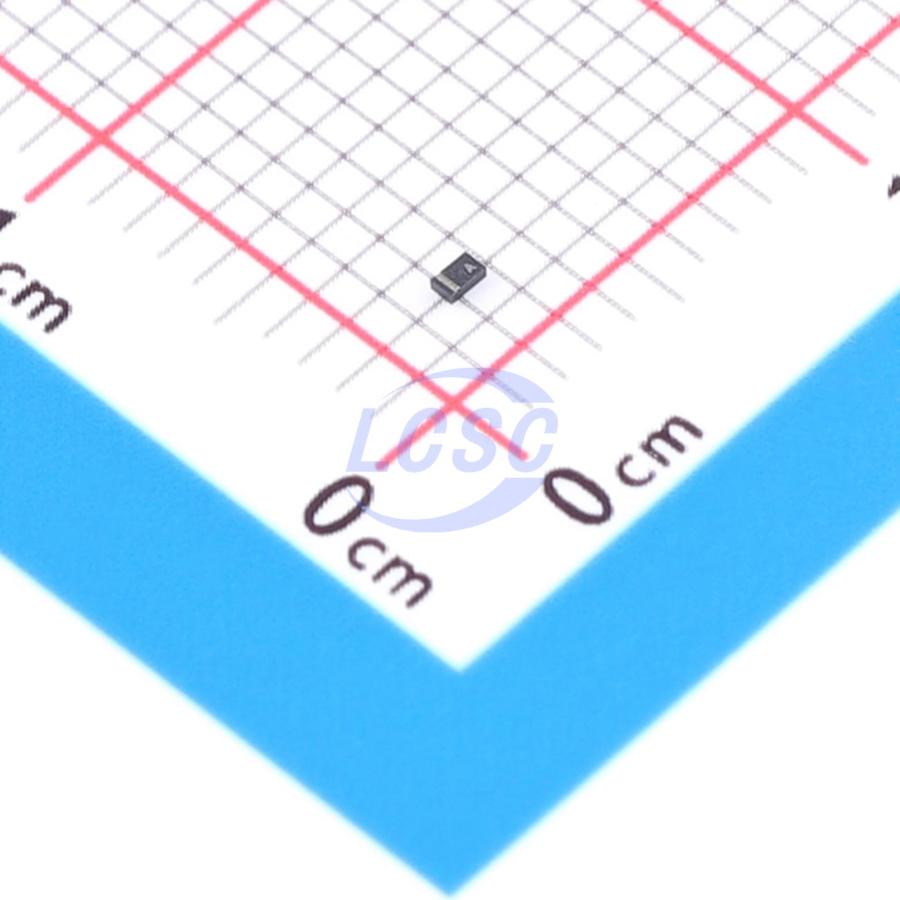

ESD207-B1-02EL E6327
8.1V 8A@8/20us 65W@8/20us Bidirectional 3.3V TSLP-2-19 TVS Diodes RoHS
TSLP-2-19ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- ESD207-B1-02EL E6327
- Store part #
- C535177
- Package / case
- TSLP-2-19
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C535177
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.37 | ₹131.85 |
| 50+ | ₹20.96 | ₹1,048.00 |
| 150+ | ₹18.63 | ₹2,794.50 |
| 500+ | ₹15.73 | ₹7,865.00 |
| 2,500+ | ₹14.45 | ₹36,125.00 |
| 5,000+ | ₹13.67 | ₹68,350.00 |
5 × ₹26.37
₹131.85
excl. GST
₹155.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
ESD207-B1-02EL E6327
₹131.85 for 5 + GST
Specifications
- Clamping Voltage
- 8.1V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 65W@8/20us
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 50nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
Applications
- Audio Line, Speaker, Headset, Microphone Protection
- Human Interface Devices (Keyboard, Touchpad, Buttons)
Key features
- ESD / transient / surge protection of one data / Vbus line exceding standard:
- IEC61000-4-2 (ESD): ±30 kV (air / contact discharge)
- IEC61000-4-4 (EFT): ±50 A (5/50 ns)
- IEC61000-4-5 (surge): ±8 A (8/20 μs)
- Bi-directional, symmetrical working voltage up to VRWM = ±3.3 V
- Medium capacitance: CL = 14 pF (typ.)
- Ultra low clamping voltage VcL = 7 V (typ.) @ IPP = 16 A (TLP)
- Ultra low dynamic resistance RDYN = 0.13 Ω typ.
- Pb-free (RoHS compliant) and halogen free package
