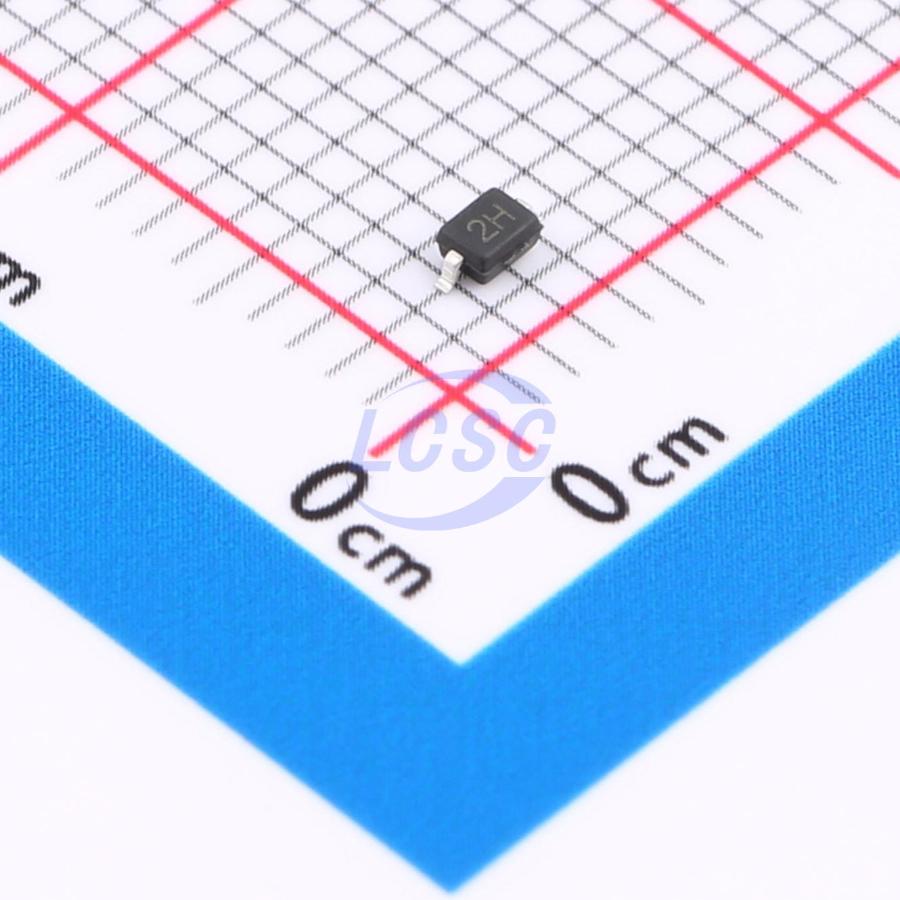

ESD24VD3B
43VC 52VC Clamp ESD DIODE SOD-323
ESD DIODE 24VWM 43VC 52VC SOD-323
- Manufacturer
- Yint
- Manufacturer part #
- ESD24VD3B
- Store part #
- C484324
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C484324
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.50 | ₹115.00 |
| 100+ | ₹8.89 | ₹889.00 |
| 300+ | ₹7.59 | ₹2,277.00 |
| 3,000+ | ₹6.62 | ₹19,860.00 |
| 6,000+ | ₹5.83 | ₹34,980.00 |
| 9,000+ | ₹5.44 | ₹48,960.00 |
10 × ₹11.50
₹115.00
excl. GST
₹135.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD24VD3B
₹115.00 for 10 + GST
Specifications
- Clamping Voltage
- 43V;52V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Power Dissipation (Ppp)
- 320W@8/20us
- Voltage - Breakdown
- 26.7V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
ESD24VD3B is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium
Applications
- Cell Phone Handsets and Accessories
- Microprocessor based equipment
- Personal Digital Assistants (PDA’s)
- Notebooks, Desktops, and Servers
- Portable Instrumentation
- Peripherals
- Pagers
Key features
- Ultra low leakage: nA level
- Operating voltage: 24V
- Package: SOD-323
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 6A (8/20μs)
