TECH PUBLICDatasheet (PDF)

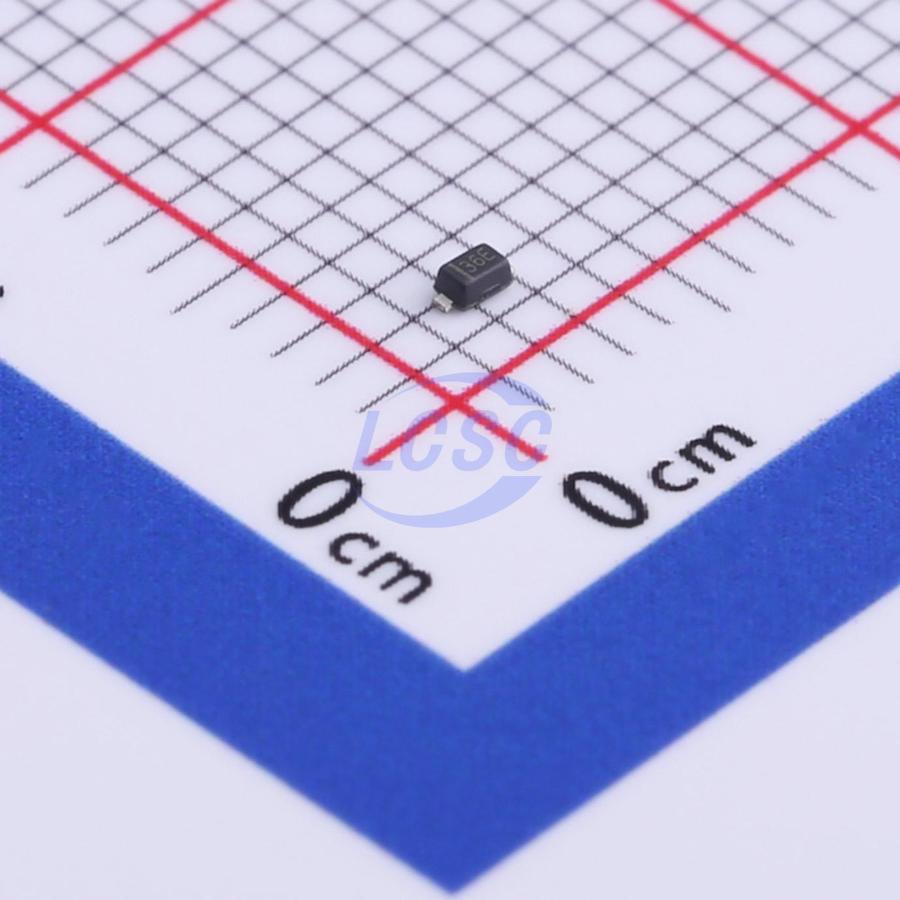

ESD36VU25-523
67VC Clamp 5A@8/20us Ipp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 36VWM 67VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD36VU25-523
- Store part #
- C521904
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,390 in stock
#C521904
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.28 | ₹52.80 |
| 100+ | ₹4.23 | ₹423.00 |
| 300+ | ₹3.72 | ₹1,116.00 |
| 3,000+ | ₹3.18 | ₹9,540.00 |
| 6,000+ | ₹2.87 | ₹17,220.00 |
| 9,000+ | ₹2.71 | ₹24,390.00 |
10 × ₹5.28
₹52.80
excl. GST
₹62.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD36VU25-523
₹52.80 for 10 + GST
Specifications
- Clamping Voltage
- 67V
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 40V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
Key features
- Protects one line
- Ultralow leakage: nA level
- Operating voltage: 36V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC61000-4-5 (Lightning) 5A (8/20 μs)
- RoHS Compliant
