TECH PUBLICDatasheet (PDF)

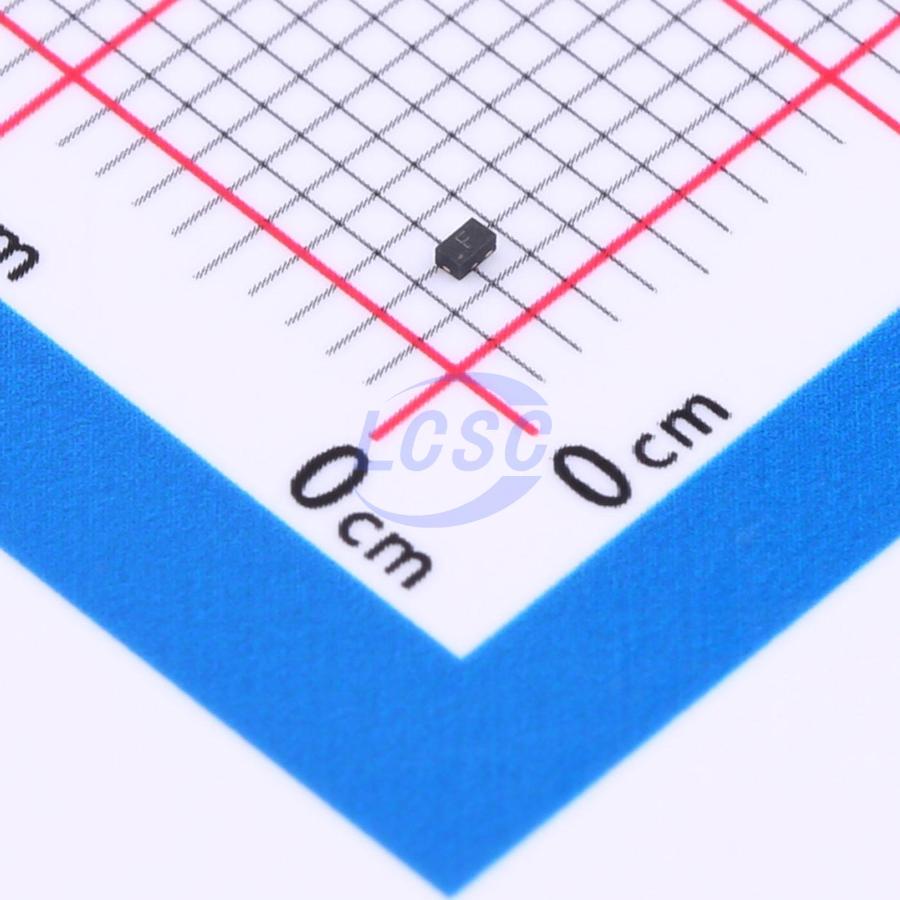

ESD3V3B20A-1006
6VC 10VC Clamp 22A@8/20us Ipp DFN1006-2
DFN1006-2RoHSActive
3.3VWM 6VC 10VC DFN1006-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD3V3B20A-1006
- Store part #
- C5182091
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,250 in stock
#C5182091
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.54 | ₹55.40 |
| 100+ | ₹4.46 | ₹446.00 |
| 300+ | ₹3.93 | ₹1,179.00 |
| 1,000+ | ₹3.52 | ₹3,520.00 |
| 5,000+ | ₹3.19 | ₹15,950.00 |
| 12,000+ | ₹2.66 | ₹31,920.00 |
10 × ₹5.54
₹55.40
excl. GST
₹65.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
ESD3V3B20A-1006
₹55.40 for 10 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 22A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 3.8V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.009 g
Overview
Applications
- Cellular Handsets and Accessories
- Notebooks and Handhelds
- Portable Instrumentation
- Set Top Box
- Industrial Controls
Key features
- 200w peak pulse power (8/20 μs)
- Ultra low leakage: nA level
- Operating voltage: 3.3V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC61000 - 4 - 5 (Lightning) 22A (8/20μs)
- RoHS Compliant
