TECH PUBLICDatasheet (PDF)

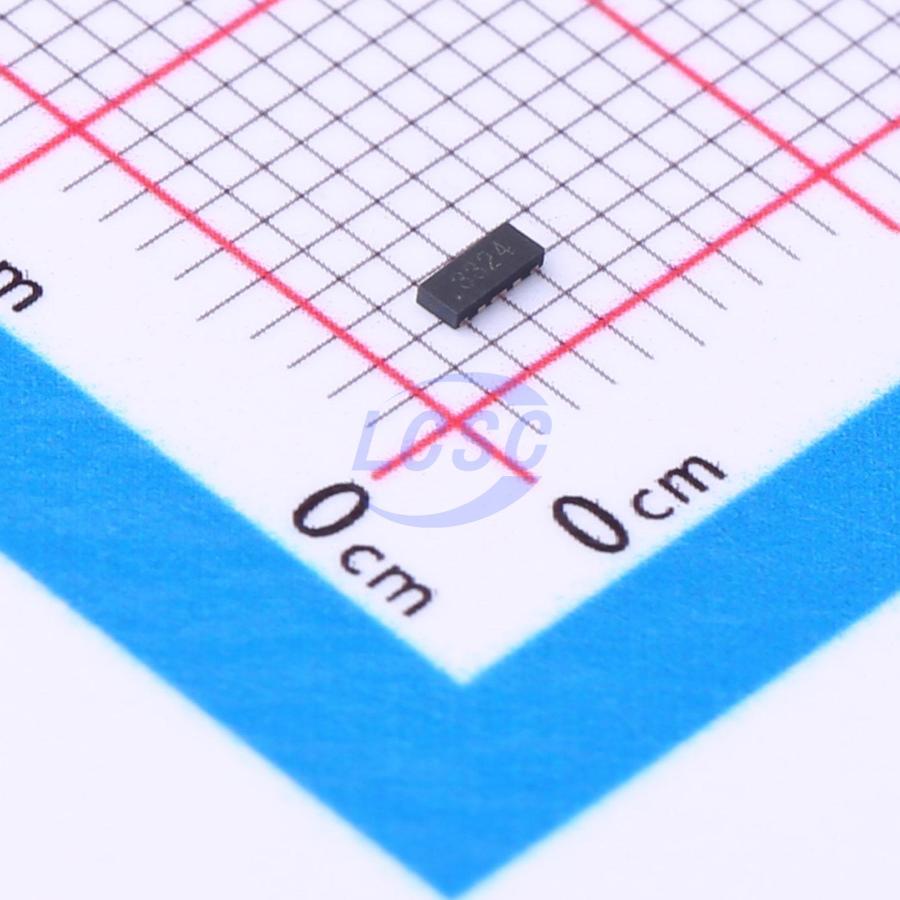

ESD3V3U4ULC-P(2.5x1.0)
nan
DFN2510-10RoHSActive
3.3VWM 15VC DFN2510-10
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD3V3U4ULC-P(2.5x1.0)
- Store part #
- C2923367
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,075 in stock
#C2923367
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.85 | ₹64.25 |
| 50+ | ₹10.54 | ₹527.00 |
| 150+ | ₹9.39 | ₹1,408.50 |
| 500+ | ₹8.53 | ₹4,265.00 |
| 3,000+ | ₹6.30 | ₹18,900.00 |
| 6,000+ | ₹5.94 | ₹35,640.00 |
5 × ₹12.85
₹64.25
excl. GST
₹75.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD3V3U4ULC-P(2.5x1.0)
₹64.25 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 70W@8/20us
- Voltage - Breakdown
- 4V
- Reverse Leakage Current (Ir)
- 60nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Applications
- High Definition Multimedia Interface (HDMI)
- Digital Visual Interface (DVI)
- Unified Display Interface (UDI)
- MDDI Ports
- PCI Express
- Serial ATA
Key features
- Ultra low capacitance: 0.3pF typical (/O to I/0)
- Ultralow leakage: nA level
- Low operating voltage: 3.3V
- Low clamping voltage
- Up to 4 data lines and one power line protects
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test: Air discharge: ±25 kV, Contact discharge: ±20 kV
- IEC 61000-4-4 (EFT): 40A (5/50ns)
- IEC 61000-4-5 (Lightning): 4 A (8/20μs)
- ROHS Compliant
