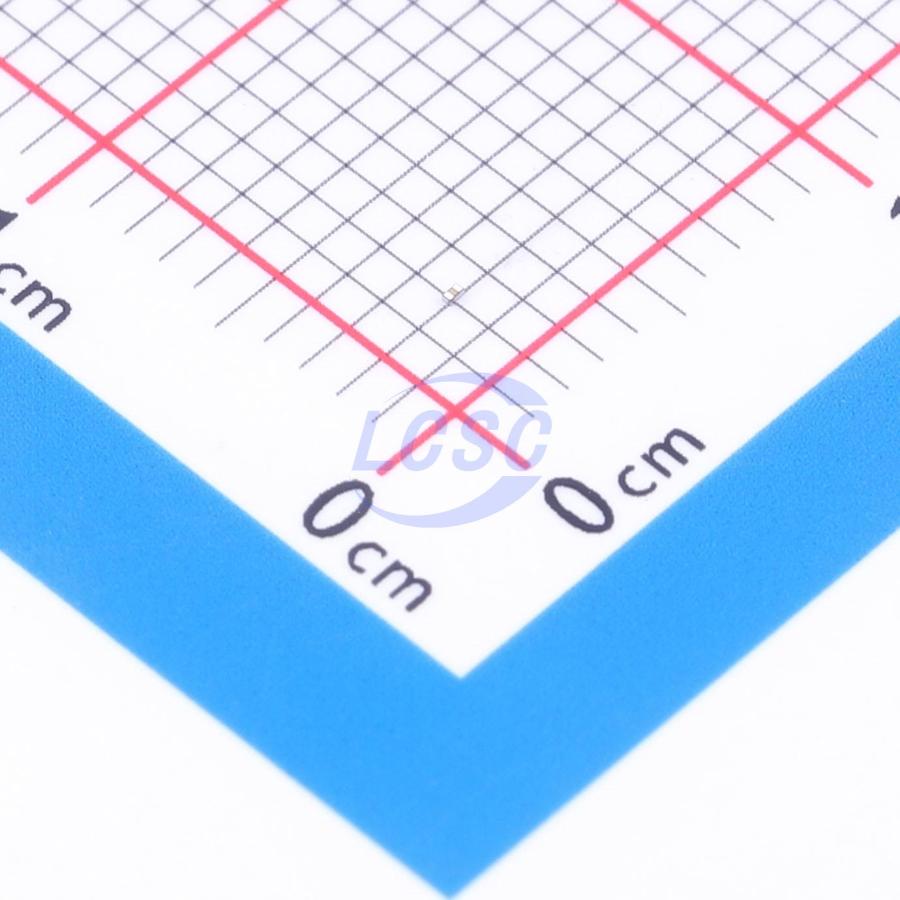

ESD5101FCT5G
6.5VC Clamp ESD DIODE 01005
- Manufacturer
- onsemi
- Manufacturer part #
- ESD5101FCT5G
- Store part #
- C605390
- Package / case
- 01005
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
495 in stock
#C605390
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.34 | ₹54.34 |
| 10+ | ₹43.04 | ₹430.40 |
| 30+ | ₹38.04 | ₹1,141.20 |
| 100+ | ₹32.16 | ₹3,216.00 |
1 × ₹54.34
₹54.34
excl. GST
₹64.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ESD5101FCT5G
₹54.34 for 1 + GST
Specifications
- Clamping Voltage
- 6.5V
- Operating Temperature
- -55℃~+125℃
- Voltage - Breakdown
- 3.68V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.017 g
Overview
The ESD51x1 series is designed to protect voltage-sensitive components from electrostatic discharge (ESD). Excellent clamping capability, low leakage current, and fast response time provide best-in-class protection for ESD-susceptible designs. Its compact form factor makes it ideal for smartphones, smartwatches, and other portable/wearable applications where board space is at a premium.
Applications
- Smartphones
- Smartwatches
- Portable/wearable device applications
Key features
- Low capacitance (5 pF max, I/O to GND)
- Small form factor package
- Protection compliant with IEC 61000-4-2 (Level 4)
- Low ESD clamping voltage
- Lead-free, halogen-free/bromine-free flame retardant, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ESD5V0B5-01005#C521887TECH PUBLIC · SLP0402-2 | TECH PUBLIC | SLP0402-2 | 19,950 | ₹8.36 · 19,950 in stock | View |
