TECH PUBLICDatasheet (PDF)

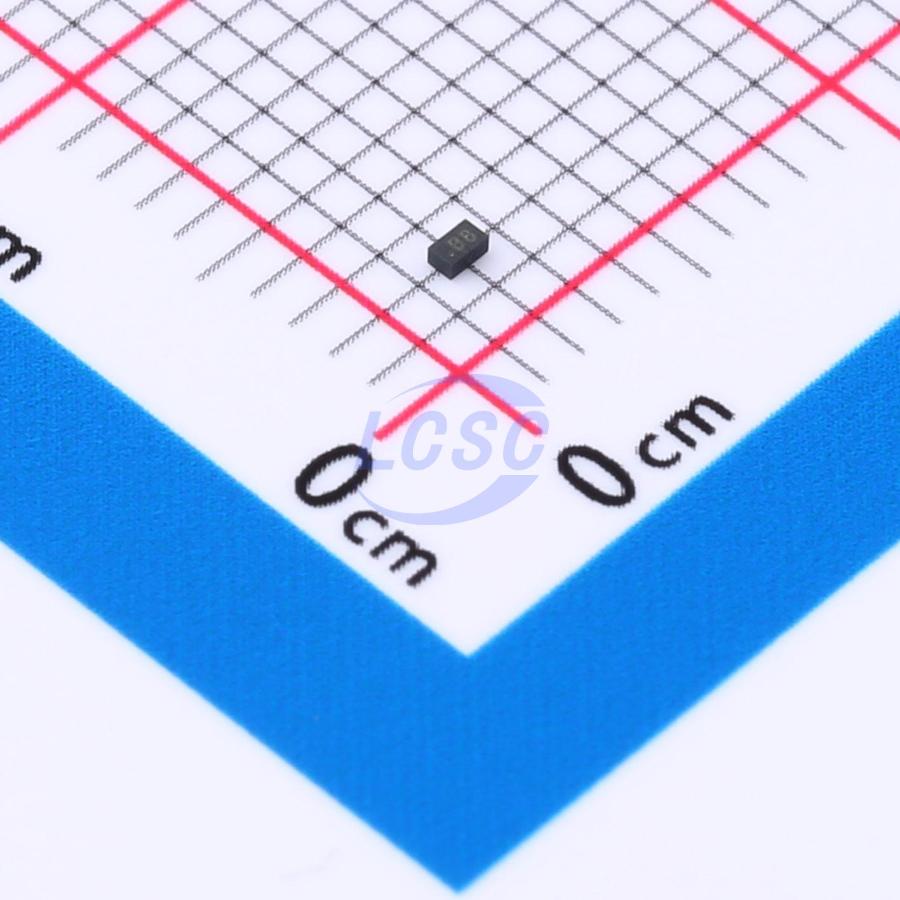

ESD5651N
15VC Clamp 30A@8/20us Ipp ESD DIODE DFN1006-2
DFN1006-2RoHSActive
ESD DIODE 4.5VWM 15VC DFN1006-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD5651N
- Store part #
- C5342369
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,160 in stock
#C5342369
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.86 | ₹58.60 |
| 100+ | ₹4.68 | ₹468.00 |
| 300+ | ₹4.10 | ₹1,230.00 |
| 1,000+ | ₹3.65 | ₹3,650.00 |
| 5,000+ | ₹3.07 | ₹15,350.00 |
| 10,000+ | ₹2.90 | ₹29,000.00 |
10 × ₹5.86
₹58.60
excl. GST
₹69.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ESD5651N
₹58.60 for 10 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 30A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 450W@8/20us
- Voltage - Breakdown
- 4.7V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 4.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.024 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
Key features
- Low operating voltage: ±4.5V
- Ultra low capacitance: 60pF typical
- Ultralow leakage: nA level
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 30A (8/20μs)
