TECH PUBLICDatasheet (PDF)

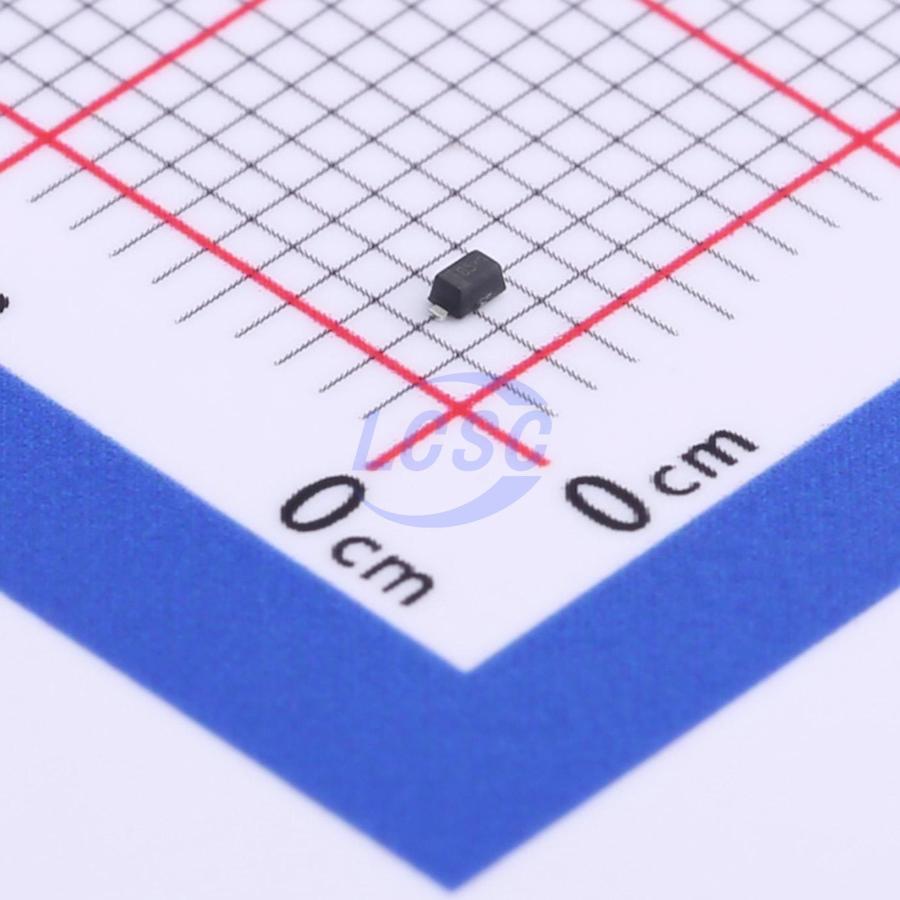

ESD5V0B12-523
15VC Clamp 5A@8/20us Ipp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 5VWM 15VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD5V0B12-523
- Store part #
- C521908
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,180 in stock
#C521908
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.34 | ₹86.80 |
| 200+ | ₹3.44 | ₹688.00 |
| 600+ | ₹2.94 | ₹1,764.00 |
| 3,000+ | ₹2.38 | ₹7,140.00 |
| 9,000+ | ₹2.12 | ₹19,080.00 |
| 21,000+ | ₹1.98 | ₹41,580.00 |
20 × ₹4.34
₹86.80
excl. GST
₹102.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD5V0B12-523
₹86.80 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.033 g
Overview
Applications
- Cellular Handsets & Accessories
- Digital Visual Interface (DVI)
- Display Port
- MDDI Ports
- USB Ports
- PCI Express
- Serial ATA
Key features
- Protects one data or power line
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC61000 - 4 - 2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
