TECH PUBLIC

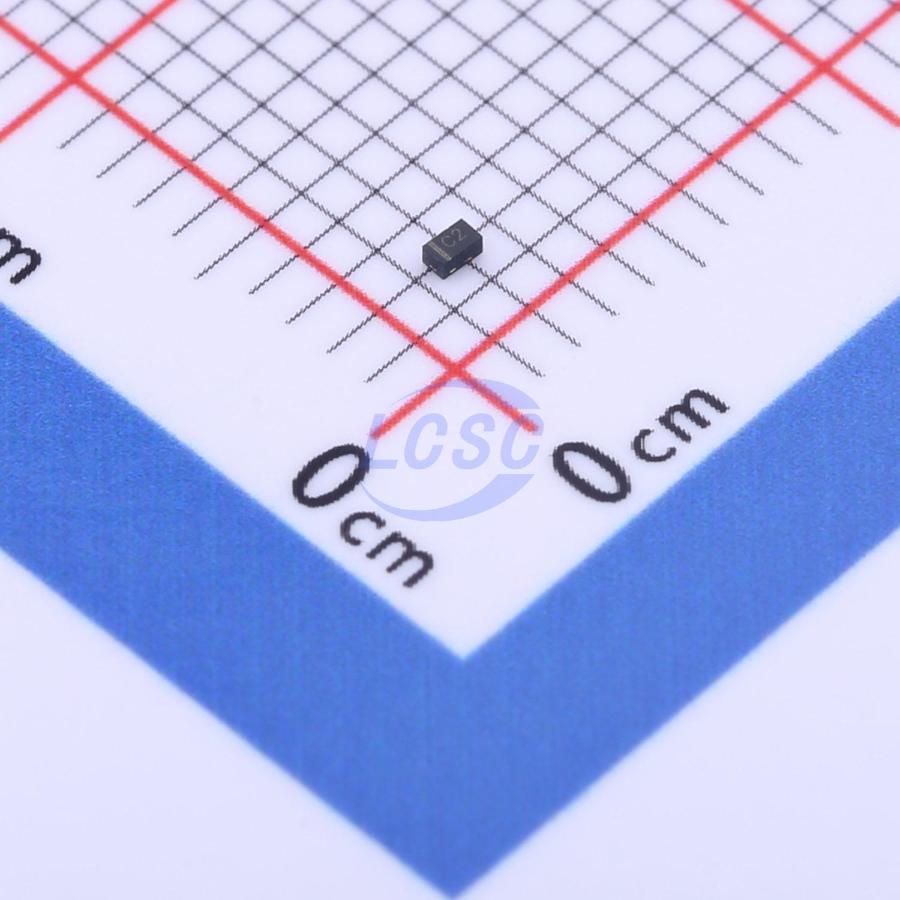

ESD5V0U03-1006

20VC Clamp 3.3A@8/20us Ipp ESD DIODE DFN1006-2

DFN1006-2RoHSActive

ESD DIODE 5VWM 20VC DFN1006-2

Manufacturer: TECH PUBLIC
Manufacturer part #: ESD5V0U03-1006
Store part #: C970007
Package / case: DFN1006-2
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,890 in stock

#C970007

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
10+	₹6.36	₹63.60
100+	₹5.11	₹511.00
300+	₹4.48	₹1,344.00
1,000+	₹4.01	₹4,010.00
5,000+	₹3.21	₹16,050.00
10,000+	₹3.03	₹30,300.00

Quantity (min 10, multiples of 10)

10 × ₹6.36

₹63.60

excl. GST

₹75.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

ESD5V0U03-1006

₹63.60 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 20V
Peak Pulse Current (Ipp): 3.3A@8/20us
Peak Pulse Power Dissipation (Ppp): 70W@8/20us
Voltage - Breakdown: 6V
type: ESD
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.007 g

Overview

Applications

Cellular Handsets and Accessories
Personal Digital Assistants
Notebooks and Handhelds
Portable Instrumentation
Digital Cameras
Peripherals
Audio Players
Keypads, Side Keys, LCD Displays

Key features

Ultra low capacitance: 0.35pF typical
Ultra low leakage: nA level
Low operating voltage: 5V
Low clamping voltage
2-pin leadless package
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV
IEC61000-4-5 (Lightning) 3.3A (8/20us)
RoHS Compliant
Lead Finish: NiPdAu
