HXY MOSFETDatasheet (PDF)

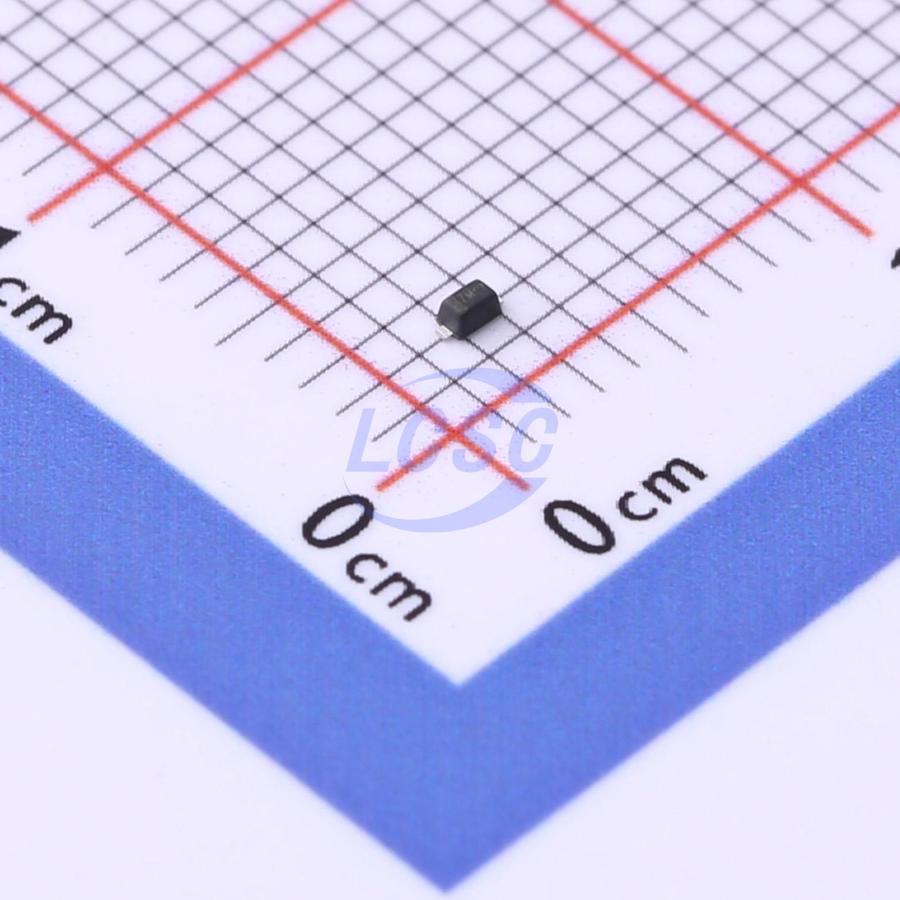

ESD5Z12-HXY
22VC Clamp 8A Ipp ESD DIODE SOD-523
SOD-523ROHS CompliantActive
ESD DIODE 12VWM 22VC SOD-523
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- ESD5Z12-HXY
- Store part #
- C4748785
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C4748785
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.80 | ₹140.00 |
| 500+ | ₹2.22 | ₹1,110.00 |
| 3,000+ | ₹1.81 | ₹5,430.00 |
| 6,000+ | ₹1.61 | ₹9,660.00 |
| 24,000+ | ₹1.46 | ₹35,040.00 |
| 51,000+ | ₹1.36 | ₹69,360.00 |
50 × ₹2.80
₹140.00
excl. GST
₹165.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD5Z12-HXY
₹140.00 for 50 + GST
Specifications
- Clamping Voltage
- 22V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 8A
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 13.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.029 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PESD12VS1UB#C7473298HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | 2,400 | ₹2.73 · 2,400 in stock | View |
 | HCPDH12V0UB-HF#C22440413HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | On request | ₹6.07 · 0 in stock | View |
