MSKSEMI

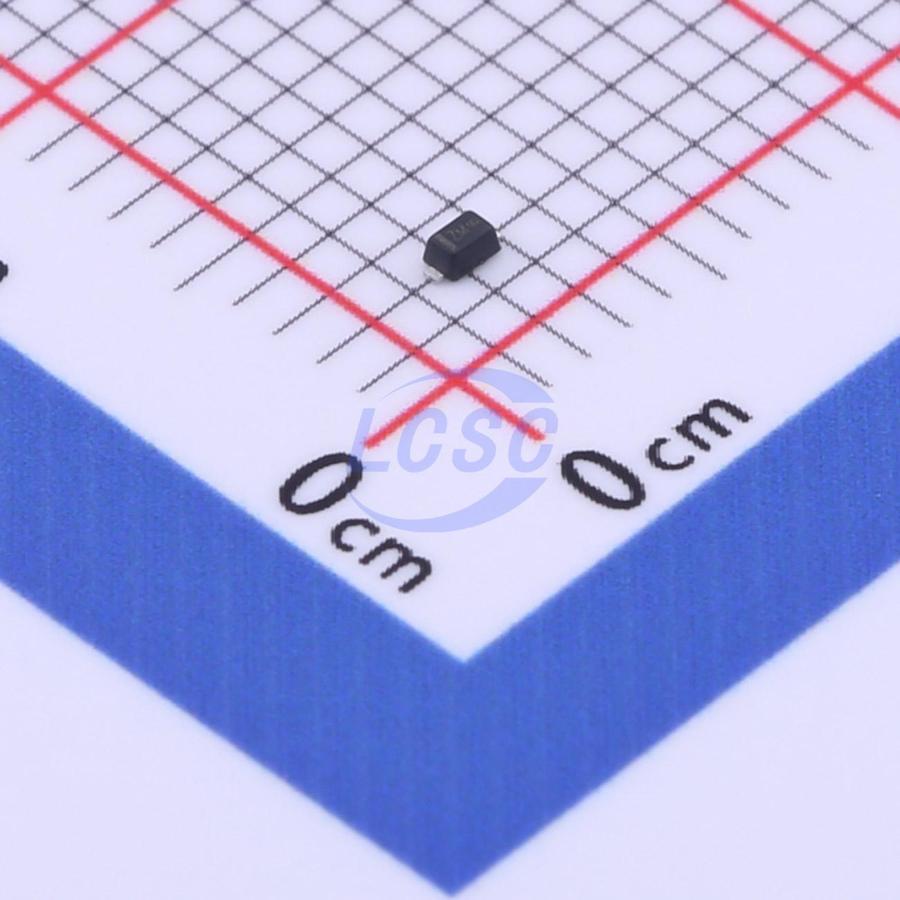

ESD5Z12V-MS

30VC Clamp 5A Ipp ESD DIODE SOD-523

SOD-523RoHSActive

ESD DIODE 12VWM 30VC SOD-523

Manufacturer: MSKSEMI
Manufacturer part #: ESD5Z12V-MS
Store part #: C2802290
Package / case: SOD-523
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,680 in stock

#C2802290

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
20+	₹3.40	₹68.00
200+	₹2.71	₹542.00
600+	₹2.33	₹1,398.00
3,000+	₹1.91	₹5,730.00
9,000+	₹1.71	₹15,390.00
21,000+	₹1.60	₹33,600.00

Quantity (min 20, multiples of 20)

20 × ₹3.40

₹68.00

excl. GST

₹80.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ESD5Z12V-MS

₹68.00 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 30V
Peak Pulse Current (Ipp): 5A
Peak Pulse Power Dissipation (Ppp): 200W
Number of Channels: 1
Voltage - Breakdown: 13.5V
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 500nA
Reverse Stand-Off Voltage (Vrwm): 12V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.028 g

Overview

Applications

Mobile phones & accessories
Microprocessor-based devices
Personal digital assistants (PDAs)
Laptops, desktops & servers
Portable instruments

Key features

IEC61000-4-2 Level 4 ESD protection
Protects unidirectional I/O lines
Low clamp voltage
Operating voltage: 2.5V, 3.3V, 5V, 6V, 7V, 12V
Low leakage current
