TECH PUBLIC

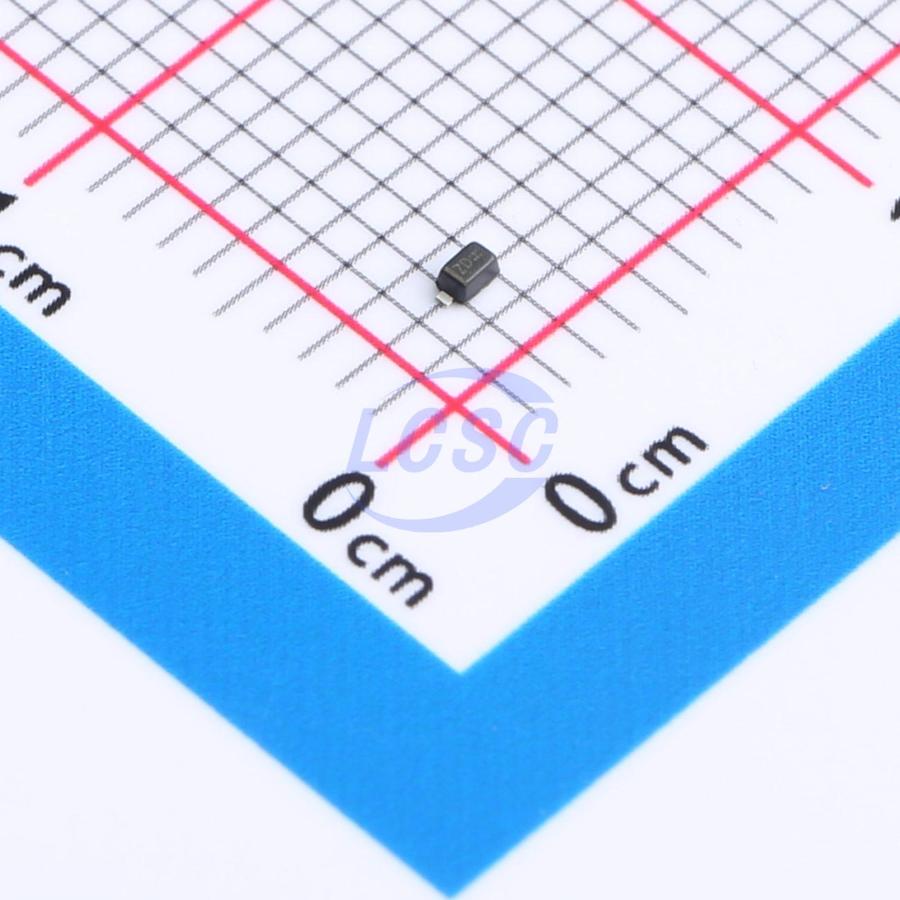

ESD5Z2.5T1G

nan

SOD-523RoHSActive

2.5VWM 14VC SOD-523

Manufacturer: TECH PUBLIC
Manufacturer part #: ESD5Z2.5T1G
Store part #: C20611848
Package / case: SOD-523
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,650 in stock

#C20611848

Stock & price checked 14 days ago

Quantity	Unit price	Pack price
50+	₹2.77	₹138.50
500+	₹2.18	₹1,090.00
3,000+	₹1.85	₹5,550.00
6,000+	₹1.65	₹9,900.00
24,000+	₹1.49	₹35,760.00
51,000+	₹1.40	₹71,400.00

Quantity (min 50, multiples of 50)

50 × ₹2.77

₹138.50

excl. GST

₹163.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ESD5Z2.5T1G

₹138.50 for 50 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 14V
Operating Temperature: -55℃~+125℃
Peak Pulse Power Dissipation (Ppp): 150W@8/20us
Number of Channels: 1
Voltage - Breakdown: 4V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 3uA
Reverse Stand-Off Voltage (Vrwm): 2.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 50 (multiples of 50)
Unit weight: 0.024 g

Overview

Applications

Mobile phones & accessories
Personal digital assistants
Laptops & handheld devices
Portable instruments
Digital cameras
Peripherals
Audio players
Keyboards, side keys, LCD displays, USB2.0

Key features

150W peak pulse power (pulse width tp = 8/20μs)
Transient protection for high-speed data lines td
IEC 61000-4-2 (ESD) ±30kV (air discharge), ±30kV (contact discharge)
IEC 61000-4-4 (EFT) 40A (5/50ns)
Protection for one power supply or I/O port
Low leakage current
Low operating voltage and clamping voltage
Solid-state silicon avalanche technology
