ESD5Z3.3T1G

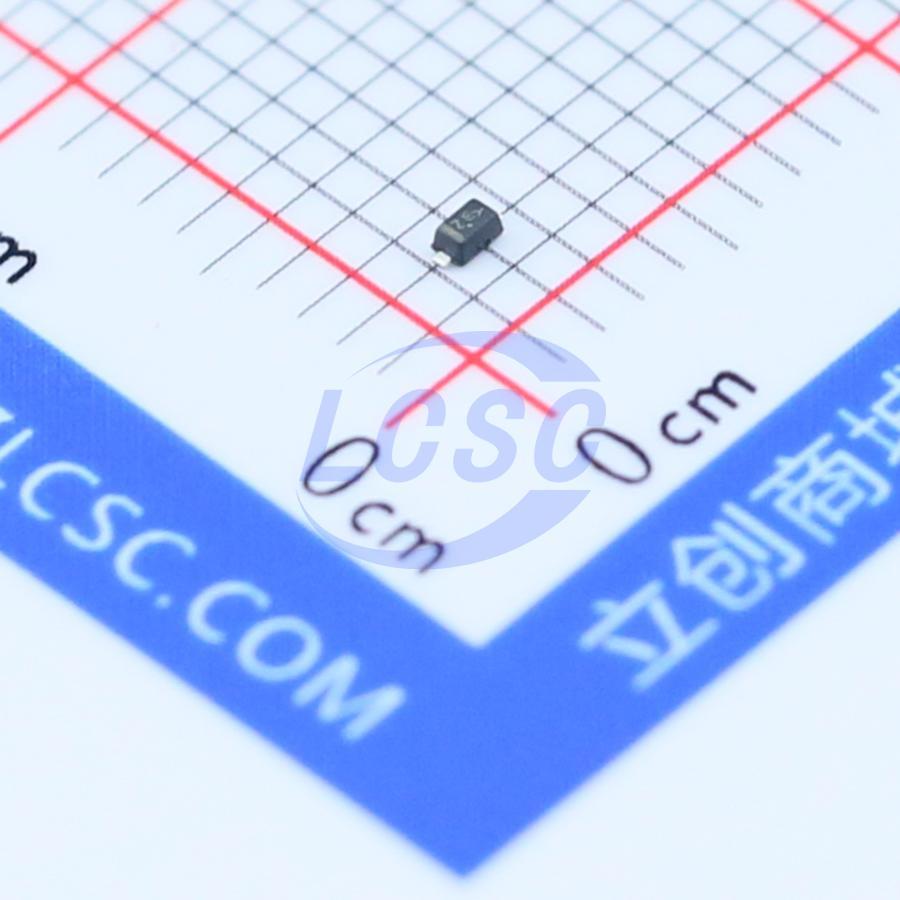

14.1VC Clamp 11.2A Ipp TVS DIODE SOD-523
TVS DIODE 3.3VWM 14.1VC SOD-523
- Manufacturer
- onsemi
- Manufacturer part #
- ESD5Z3.3T1G
- Store part #
- C61148
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,06,550 in stock
#C61148
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.58 | ₹65.80 |
| 100+ | ₹4.96 | ₹496.00 |
| 300+ | ₹4.11 | ₹1,233.00 |
| 3,000+ | ₹3.43 | ₹10,290.00 |
| 6,000+ | ₹3.19 | ₹19,140.00 |
| 9,000+ | ₹3.03 | ₹27,270.00 |
10 × ₹6.58
₹65.80
excl. GST
₹77.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD5Z3.3T1G
₹65.80 for 10 + GST
Specifications
- Clamping Voltage
- 14.1V
- Peak Pulse Current (Ipp)
- 11.2A
- Peak Pulse Power Dissipation (Ppp)
- 158W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 50nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.023 g
Overview
The ESD5Z Series is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.
Applications
- cellular phones
- portable devices
- digital cameras
- power supplies
- many other portable applications
Key features
- Low Clamping Voltage
- Small Body Outline Dimensions: 0.047"×0.032" (1.20 mm×0.80 mm)
- Low Body Height: 0.028" (0.7 mm)
- Stand−off Voltage: 2.5 V - 12 V
- Peak Power up to 240 Watts @ 8 x 20 μs Pulse
- Low Leakage
- Response Time is Typically <1 ns
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- IEC61000−4−2 Level 4 ESD Protection
- IEC61000−4−4 Level 4 EFT Protection
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- Pb−Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
