HXY MOSFETDatasheet (PDF)

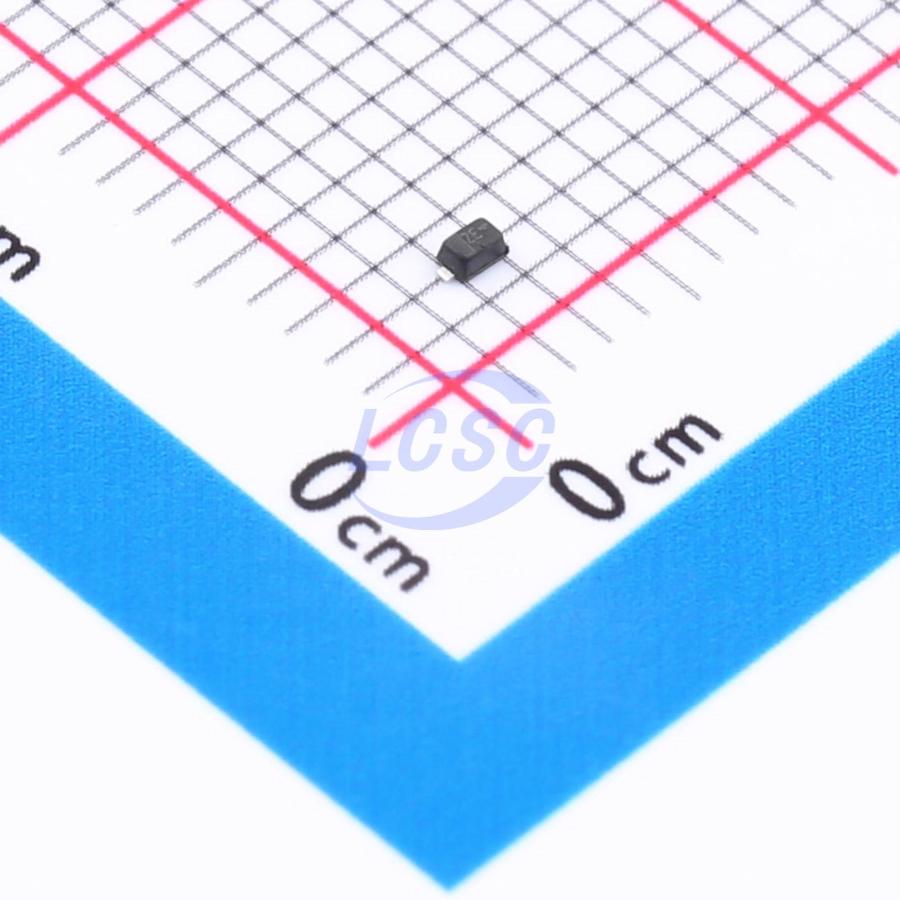

ESD5Z3V3
8.4VC Clamp 11.2A@8/20us Ipp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 3.3VWM 8.4VC SOD-523
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- ESD5Z3V3
- Store part #
- C20611932
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
300 in stock
#C20611932
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.37 | ₹118.50 |
| 500+ | ₹1.87 | ₹935.00 |
| 3,000+ | ₹1.51 | ₹4,530.00 |
| 6,000+ | ₹1.35 | ₹8,100.00 |
| 24,000+ | ₹1.19 | ₹28,560.00 |
| 51,000+ | ₹1.12 | ₹57,120.00 |
50 × ₹2.37
₹118.50
excl. GST
₹139.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD5Z3V3
₹118.50 for 50 + GST
Specifications
- Clamping Voltage
- 8.4V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 11.2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 90W@8/20us
- Voltage - Breakdown
- 5V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.026 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HESDNC3V3U1CL-A#C3033483HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | 300 | ₹2.17 · 300 in stock | View |
 | HLESD5Z3.3T1G-HXY#C42401958HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | 6,000 | ₹2.41 · 6,000 in stock | View |
 | ESD5Z3.3-HXY#C4748782HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | 5,460 | ₹2.01 · 5,460 in stock | View |
 | HESD5Z3.3T1G#C22396436HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | On request | ₹2.16 · 0 in stock | View |
