TECH PUBLICDatasheet (PDF)

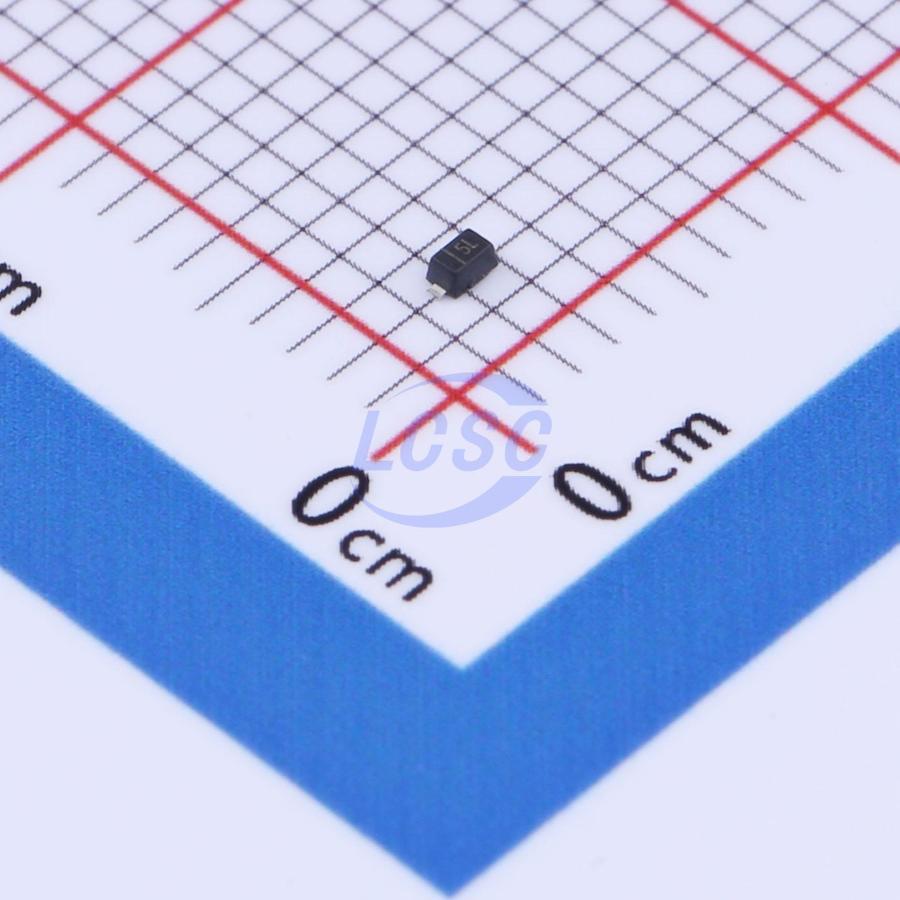

ESD5Z5VL
nan
SOD-523RoHSActive
5VWM 14VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD5Z5VL
- Store part #
- C2841378
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,540 in stock
#C2841378
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.49 | ₹109.80 |
| 200+ | ₹4.45 | ₹890.00 |
| 600+ | ₹3.92 | ₹2,352.00 |
| 3,000+ | ₹3.03 | ₹9,090.00 |
| 9,000+ | ₹2.71 | ₹24,390.00 |
| 21,000+ | ₹2.55 | ₹53,550.00 |
20 × ₹5.49
₹109.80
excl. GST
₹129.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD5Z5VL
₹109.80 for 20 + GST
Specifications
- Clamping Voltage
- 14V
- Number of Channels
- 1
- Voltage - Breakdown
- 7.5V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.026 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- Audio Players
- Keypads, Side Keys, LCD Displays
Key features
- Ultra low capacitance: 0.5pF typical
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±23kV Contact discharge: ±15kV
- IEC61000-4-5 (Lightning) 4A (8/20μs)
- RoHS Compliant
- Lead Finish: NiPdAu
