TECH PUBLICDatasheet (PDF)

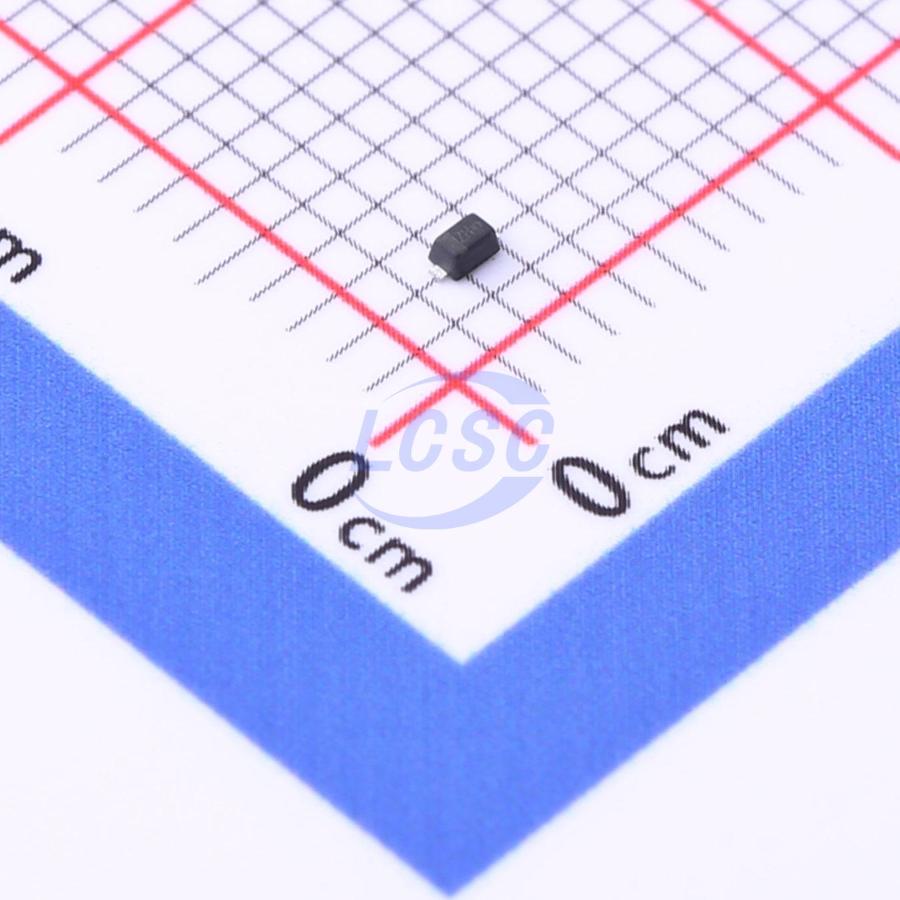

ESD5Z7V0
20VC Clamp 10A@8/20us Ipp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 7VWM 20VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD5Z7V0
- Store part #
- C2890100
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C2890100
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.35 | ₹67.00 |
| 200+ | ₹2.67 | ₹534.00 |
| 600+ | ₹2.30 | ₹1,380.00 |
| 3,000+ | ₹1.89 | ₹5,670.00 |
| 9,000+ | ₹1.69 | ₹15,210.00 |
| 21,000+ | ₹1.60 | ₹33,600.00 |
20 × ₹3.35
₹67.00
excl. GST
₹79.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD5Z7V0
₹67.00 for 20 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 10A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.023 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- Audio Players
- Keypads, Side Keys, LCD Displays, USB2.0
Key features
- 150 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines to IEC 61000 - 4 - 2 (ESD) ± 30kV (air), ± 30kV (contact)
- IEC 61000 - 4 - 4 (EFT) 40A(5/50ns)
- Protects One Power or I/O Port
- Low leakage current
- Low operating and clamping voltages
- Solid - state silicon avalanche technology
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ESD5Z7.0T1G#C2890099TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 5,880 | ₹3.25 · 5,880 in stock | View |
 | TPESD5Z7.0#C2890098TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,940 | ₹3.19 · 2,940 in stock | View |
