TECH PUBLIC

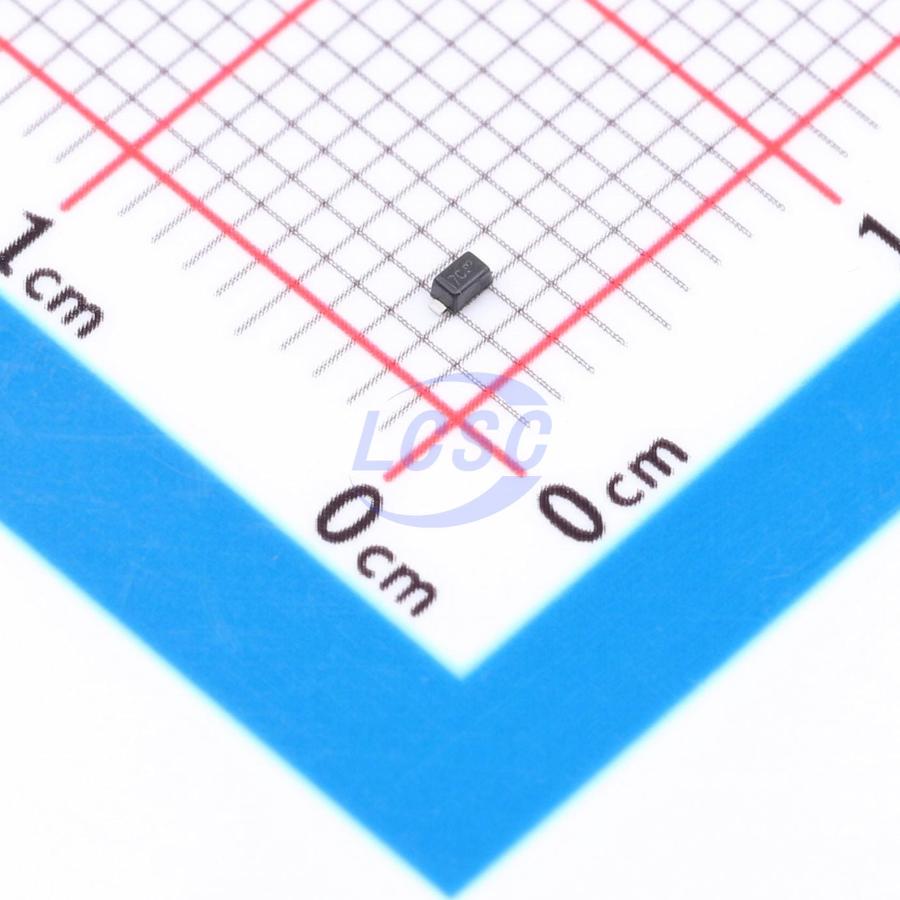

ESD5Z7V0C

15V 8A@8/20us 120W@8/20us 7.2V Bidirectional 7V SOD-523 TVS Diodes RoHS

SOD-523ROHS CompliantActive

ESD DIODE 7VWM 15VC SOD-523

Manufacturer: TECH PUBLIC
Manufacturer part #: ESD5Z7V0C
Store part #: C51939552
Package / case: SOD-523
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,440 in stock

#C51939552

Stock & price checked 15 days ago

Quantity	Unit price	Pack price
20+	₹3.40	₹68.00
200+	₹2.63	₹526.00
600+	₹2.21	₹1,326.00
3,000+	₹1.94	₹5,820.00
9,000+	₹1.73	₹15,570.00
21,000+	₹1.61	₹33,810.00

Quantity (min 20, multiples of 20)

20 × ₹3.40

₹68.00

excl. GST

₹80.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ESD5Z7V0C

₹68.00 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 15V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 8A@8/20us
Peak Pulse Power Dissipation (Ppp): 120W@8/20us
Number of Channels: 1
Voltage - Breakdown: 7.2V
type: ESD
Polarity: Bidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 7V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.03 g

Overview

Applications

Mobile phones & accessories
Personal digital assistants
Laptops & handheld devices
Portable instruments
Peripherals

Key features

Low operating voltage: 7V
Ultra-low capacitance: 20pF
Ultra-low leakage: nanoampere-level
Low clamping voltage
IEC 61000-4-2 (ESD) immunity test
Air discharge: ±30kV
Contact discharge: ±30kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
2-pin leadless package
Lead-free devices
Typical response time < 1 ns
