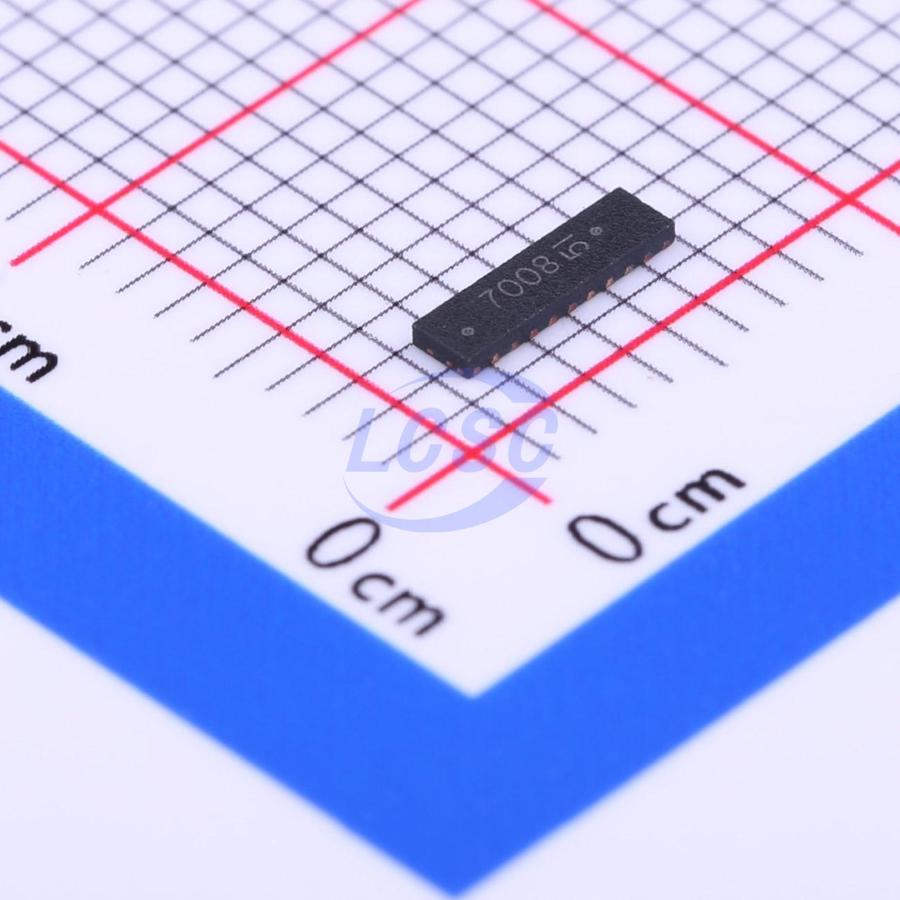

ESD7008MUTAG
10VC Clamp ESD DIODE UDFN-18(1.5x5.5)
ESD DIODE 5VWM 10VC UDFN-18(1.5x5.5)
- Manufacturer
- onsemi
- Manufacturer part #
- ESD7008MUTAG
- Store part #
- C260424
- Package / case
- UDFN-18(1.5x5.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
396 in stock
#C260424
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹181.20 | ₹181.20 |
| 10+ | ₹148.39 | ₹1,483.90 |
| 30+ | ₹130.36 | ₹3,910.80 |
| 100+ | ₹109.94 | ₹10,994.00 |
| 500+ | ₹100.81 | ₹50,405.00 |
| 1,000+ | ₹96.91 | ₹96,910.00 |
1 × ₹181.20
₹181.20
excl. GST
₹213.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD7008MUTAG
₹181.20 for 1 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Voltage - Breakdown
- 6.7V
- Number of Channels
- Four channels
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.093 g
Overview
The ESD7008 ESD protection diode is designed specifically to protect four high speed differential pairs. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow−through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance for the high speed lines.
Applications
- V−by−One HS
- Thunderbolt (Light Peak)
- USB 3.0
- HDMI
- Display Port
- LVDS
Key features
- Integrated 4 Pairs (8 Lines) High Speed Data
- Single Connect, Flow through Routing
- Low Capacitance (0.12 pF Typical, I/O to GND)
- Protection for the Following IEC Standards: IEC 61000−4−2 Level 4
- UL Flammability Rating of 94 V−0
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- This is a Pb−Free Device
