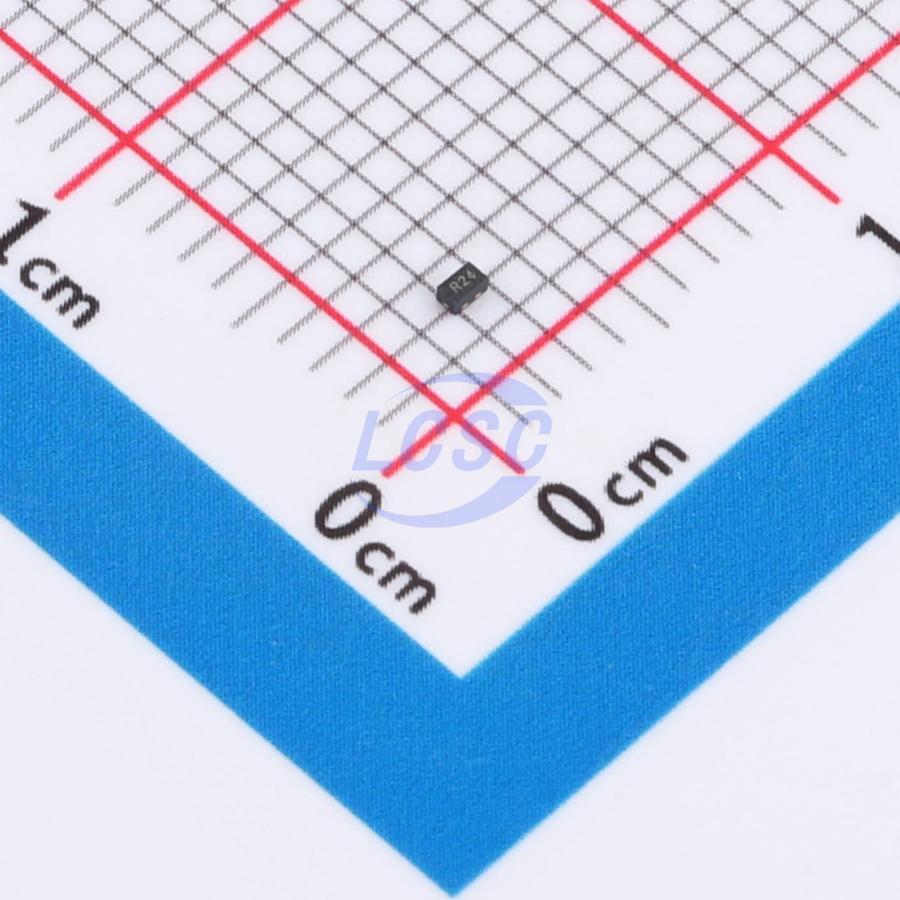

ESD701DPYR-TP
55V 2A@8/20us 90W@8/20us 26.4V Bidirectional 24V DFN1006-2 TVS Diodes
DFN1006-2RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD701DPYR-TP
- Store part #
- C52098216
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,710 in stock
#C52098216
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.62 | ₹96.20 |
| 100+ | ₹7.57 | ₹757.00 |
| 300+ | ₹6.54 | ₹1,962.00 |
| 1,000+ | ₹5.77 | ₹5,770.00 |
| 5,000+ | ₹5.15 | ₹25,750.00 |
| 10,000+ | ₹4.84 | ₹48,400.00 |
10 × ₹9.62
₹96.20
excl. GST
₹113.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ESD701DPYR-TP
₹96.20 for 10 + GST
Specifications
- Clamping Voltage
- 55V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 90W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 26.4V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.006 g
Overview
Applications
- VGA, DVI, SDI, USB1.0, USB2.0, USB3.0, USB3.1
- HDMI1.3/1.4/2.0
- Serial and parallel ports
- Laptops, desktops, servers
- Peripheral devices
Key features
- Low operating voltage: ±24V
- Ultra-low capacitance: 0.3pF typical
- Ultra-low leakage current: nanoampere level
- Low operating voltage
- Low clamping voltage
- 2-pin leadless package
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test
- Air discharge: ±20kV
- Contact discharge: ±15kV
- IEC 61000-4-5 (Lightning Surge) 2A (8/20μs)
- RoHS compliant
- Lead finish: NiPdAu
