TECH PUBLICDatasheet (PDF)

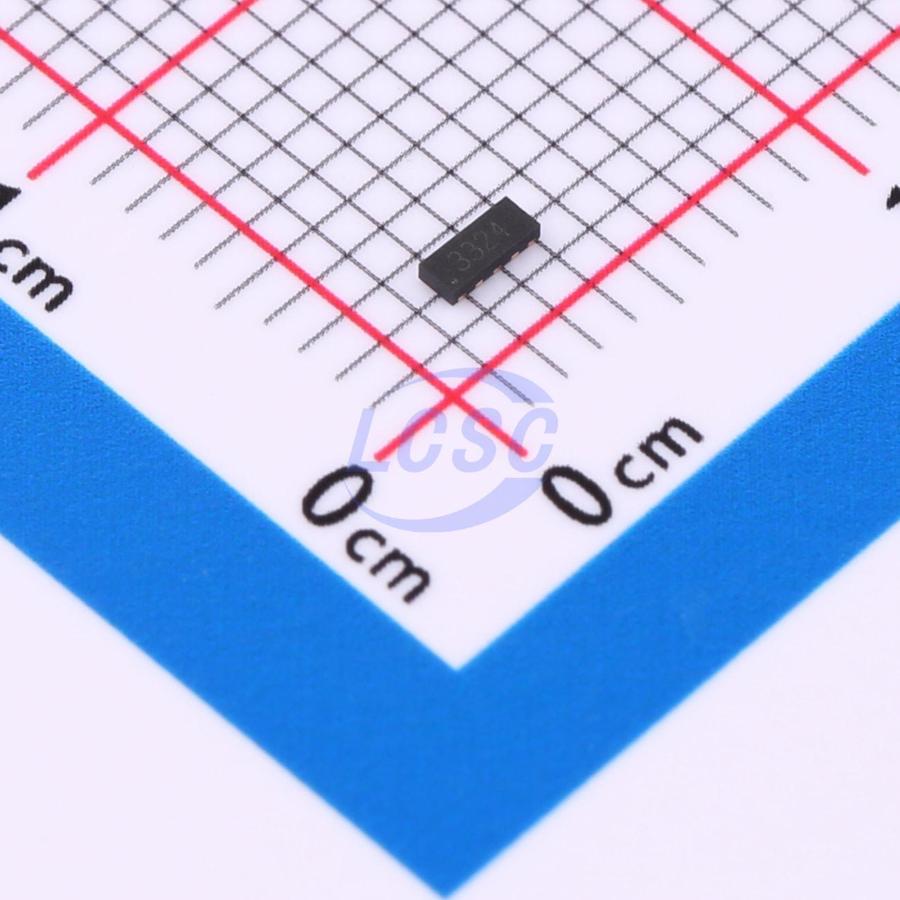

ESD73004D-TP
15VC Clamp 4A Ipp DFN2510-10
DFN2510-10RoHSActive
3.3VWM 15VC DFN2510-10
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD73004D-TP
- Store part #
- C41407956
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C41407956
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.66 | ₹63.30 |
| 50+ | ₹9.96 | ₹498.00 |
| 150+ | ₹8.61 | ₹1,291.50 |
| 500+ | ₹7.59 | ₹3,795.00 |
| 3,000+ | ₹6.79 | ₹20,370.00 |
| 6,000+ | ₹6.38 | ₹38,280.00 |
5 × ₹12.66
₹63.30
excl. GST
₹74.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD73004D-TP
₹63.30 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A
- Peak Pulse Power Dissipation (Ppp)
- 60W
- Voltage - Breakdown
- 4.2V
- type
- ESD
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- High Definition Multimedia Interface (HDMI)
- Digital Visual Interface (DVI)
- Unified Display Interface (UDI)
- MDDI Ports PCI Express
- Serial ATA
Key features
- Ultra low capacitance: 0.22pF typical (/O to I/O)
- Ultra low leakage: nA level
- Low operating voltage: 3.3V
- Low clamping voltage
- Up to 4 data lines and one power line protects
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±20kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) : 4A(8/20μs)
- ROHS Compliant
