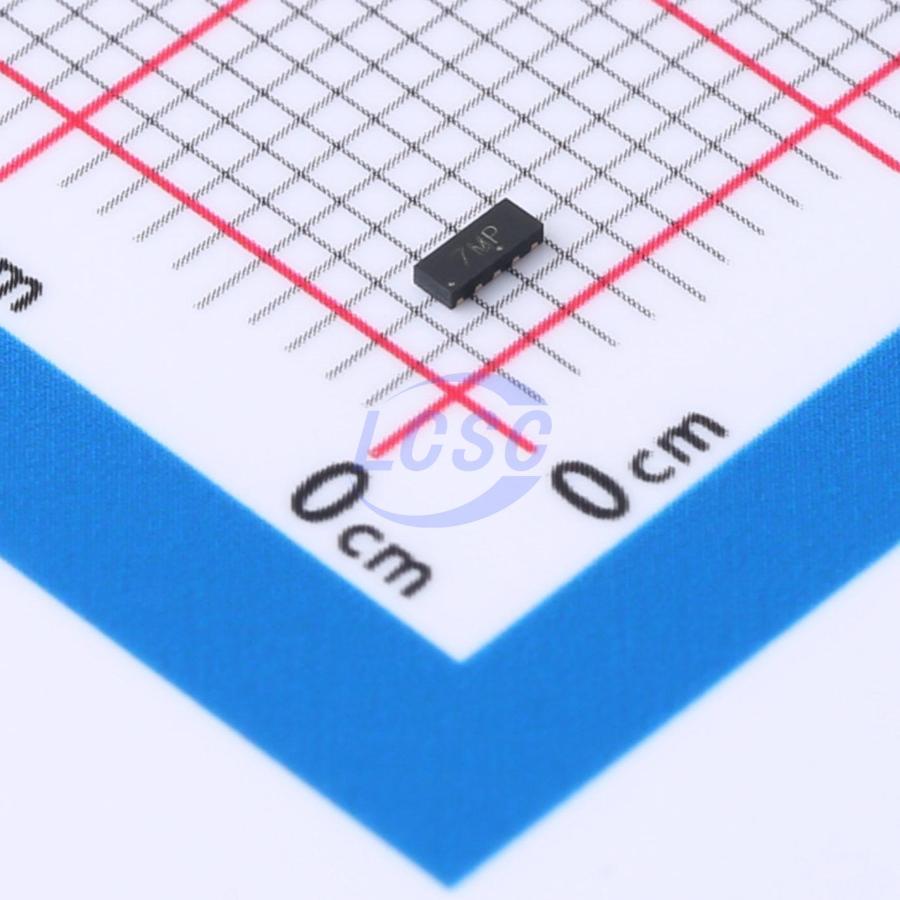

TECH PUBLIC

ESD73034D

18VC Clamp 3A@8/20us Ipp ESD DIODE DFN2510-10

DFN2510-10RoHSActive

ESD DIODE 3.3VWM 18VC DFN2510-10

Manufacturer: TECH PUBLIC
Manufacturer part #: ESD73034D
Store part #: C7202962
Package / case: DFN2510-10
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,495 in stock

#C7202962

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹16.60	₹83.00
50+	₹13.01	₹650.50
150+	₹11.21	₹1,681.50
500+	₹9.84	₹4,920.00
3,000+	₹8.65	₹25,950.00
6,000+	₹8.11	₹48,660.00

Quantity (min 5, multiples of 5)

5 × ₹16.60

₹83.00

excl. GST

₹97.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ESD73034D

₹83.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 18V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 3A@8/20us
Peak Pulse Power Dissipation (Ppp): 60W@8/20us
Number of Channels: Four channels
Voltage - Breakdown: 6V
type: ESD
Reverse Leakage Current (Ir): 200nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.027 g

Overview

Applications

HDMI 1.4 and 2.0 interfaces
USB 2.0 and 3.0 interfaces
MDDI interface
Monitors and flat panel displays
Set-top boxes and digital TVs
Video graphics cards
Digital video interfaces
Laptops

Key features

Ultra-low capacitance: 0.25pF typical (I/O to I/O)
Low operating voltage: ±3.3V
Low clamping voltage
Protection for up to 4 lines
Leadless pass-through package
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test — Air discharge: ±25kV
Contact discharge: ±20kV
IEC 61000-4-5 (Lightning Surge) 3A (8/20μs)
